~ China Ti Alloy (Titanium Alloy), Nitinol Alloy, Ti-Ni Alloy, TiNi Alloy (Nickel & Titanium Alloy), Shape Memory Alloy - Chinese Supplier ~

• Made from Ti (Titanium),Ni (Nickel) and other elements

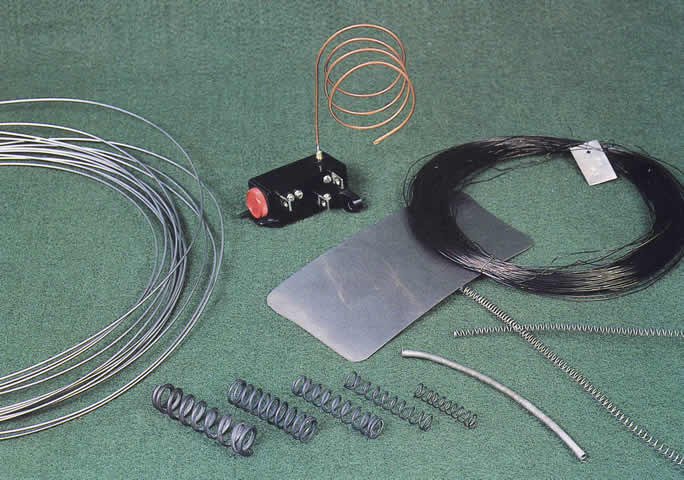

• Product images of Nitinol alloy, Ni-Ti,NiTi,TiNi (Nickel & Titanium) alloy & Shape memory alloy

Nitinol alloy, Ni-Ti alloy & Shape memory alloy

• Featured with high ability of damping, anticorrosion, anti-worn, high strength, heat resistance and low density, etc

• Purpose:

• Medical application of: Surgical (clinical): Aneurism clips/clamps, Harrington rods (Chine straighten), Bone plates, Staples, Orthopedic implants, Dentistry: Tooth orthopaedic wires
• Thermal machines and thermal devices: Thermal actuators, Temperature safety (relief) valves, Overheat monitors, Air-conditioning controllers, Space navigation self erecting antennas, Robot arms, etc
• Fasteners and couplers: Pipe couplings, Electrical connectors, Shape memory clamps & springs

Specification	Parameter	Standard
Alloy Ingot	Ti-Ni Alloy < 50 Kg	Customers' requirement
	β-Ti Alloy T16 < 150 Kg
Alloy Rod	Φ6 mm to Φ50 mm	GB/T2965-96
Alloy Wire	Φ0.07 mm to Φ6 mm	GB/T3632-98
Mechanical Properties	Parameter	Note
Tensile Strength	700 to 900 MPa	Heat Treatment
Yielding Strength	120 to 150 MPa	Martensite
	420 to 460 MPa	Austenite
Shear Strength	≥ 776 MPa
Elongation	15 to 30 %
Physical Properties	Parameter	Note
Transformation Temperature	-10 to 120 ℃	A.F.piont
Density	6.5 g/cm3
Rigidity	280 Hv
Melting Point	1300 ℃
Specific Heat	6 to 8 Cal/Mol ℃
Specific Resistance	(50 to 110) 10-6 Ohm cm
Thermal Conductivity	0.209 w/cm ℃	Room temperature
Thermal Expansion Coefficient	10 x 10-6/℃
Elastic Modulus	71400 MPa	Martensite
	83300 MPa	Austenite
Shape Memory Strain	6 to 10 % or under	One way (N=1)
	0.5 to 5 % or under	Two way (N=10 to 107)
Recovery Stress	290 MPa	Maximum

• Shapes such as wires, rods, plates, belts, springs, pipes or customers' designs are also available

• Packing: According to customers' requirement

• Production capacity: 2000 Kgs per month

• Minimum order: 20 Kgs

• Delivery: Within 45 working days after signing of contract
