~ China Aluminium Alloy Die Casting (Al alloy Die Casting) & Zinc Alloy Die Casting (Zn Alloy Die Casting/Zamak Die Casting) ~

Product images of Aluminum alloy die casting & Zinc alloy die casting

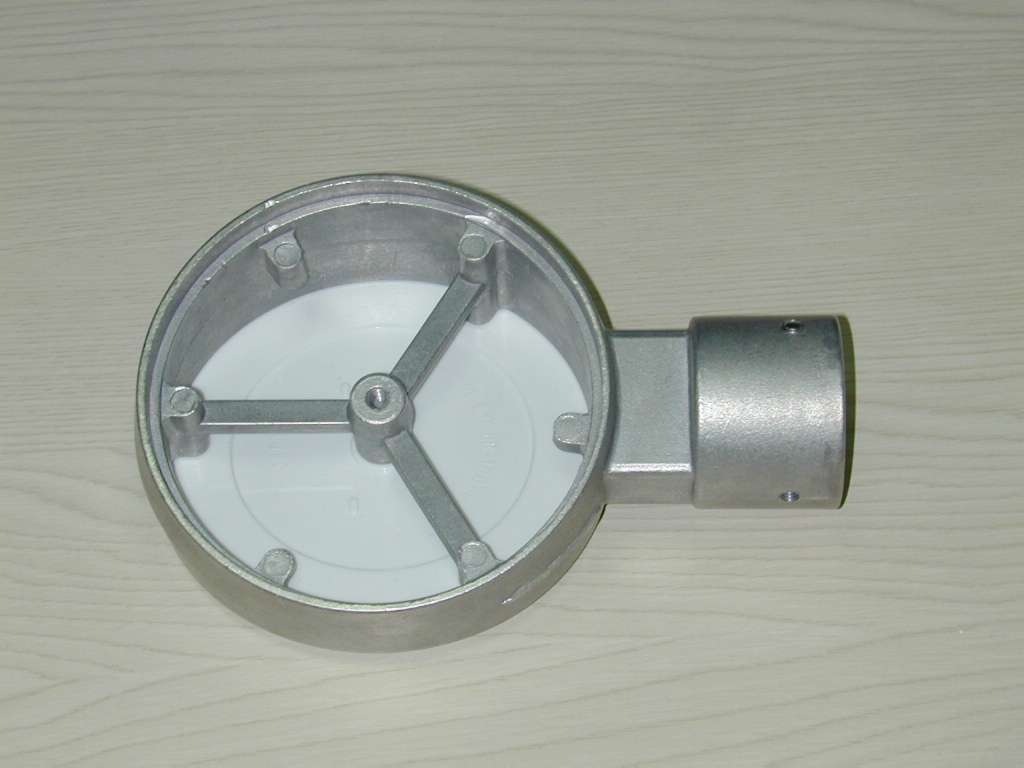

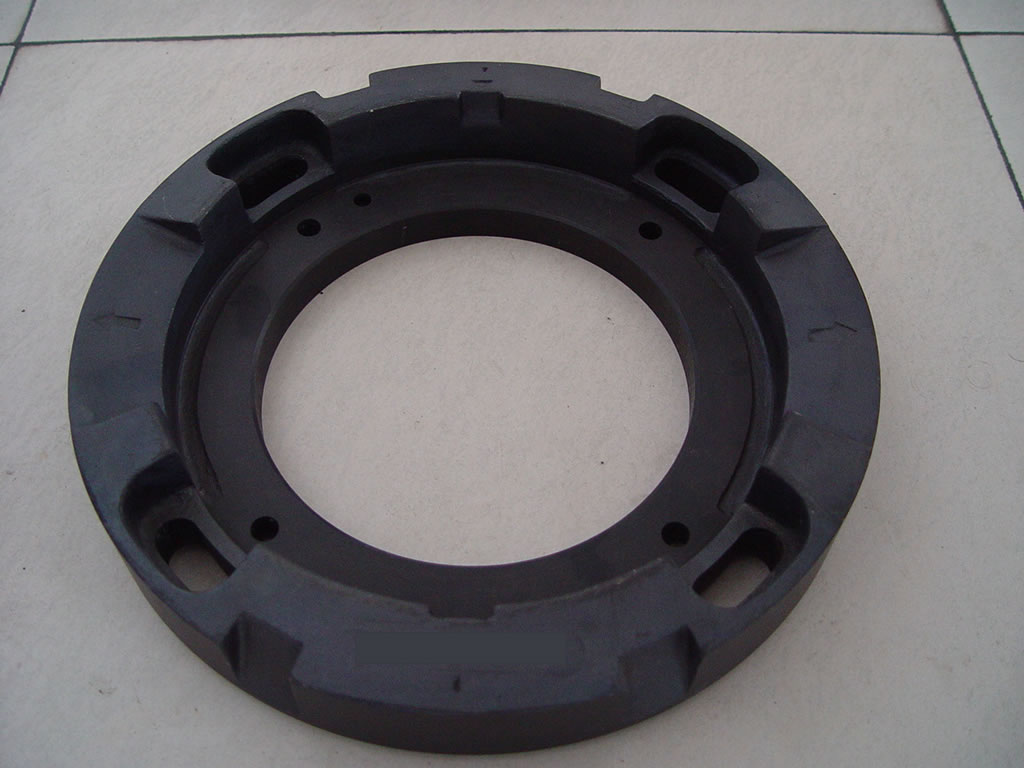

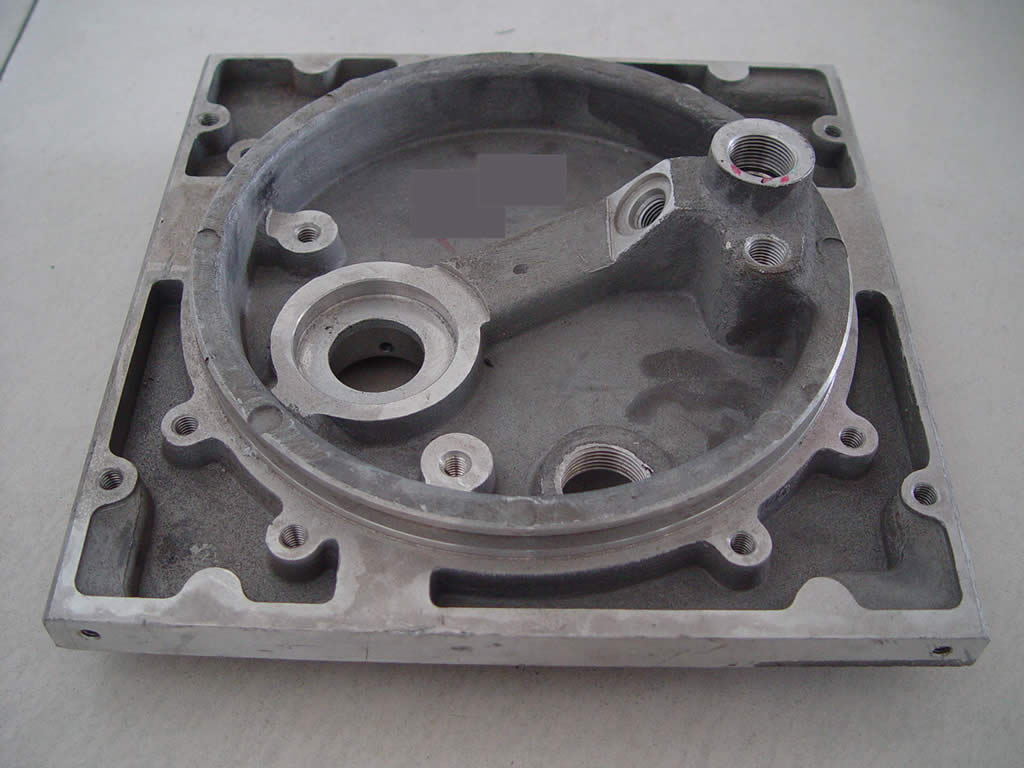

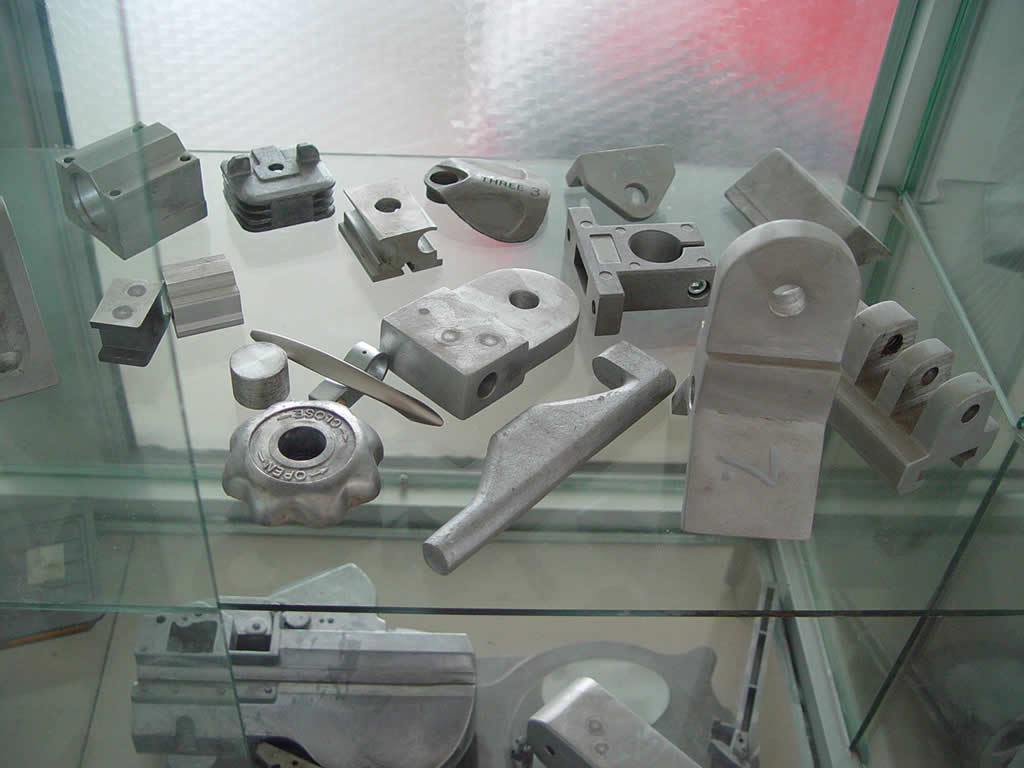

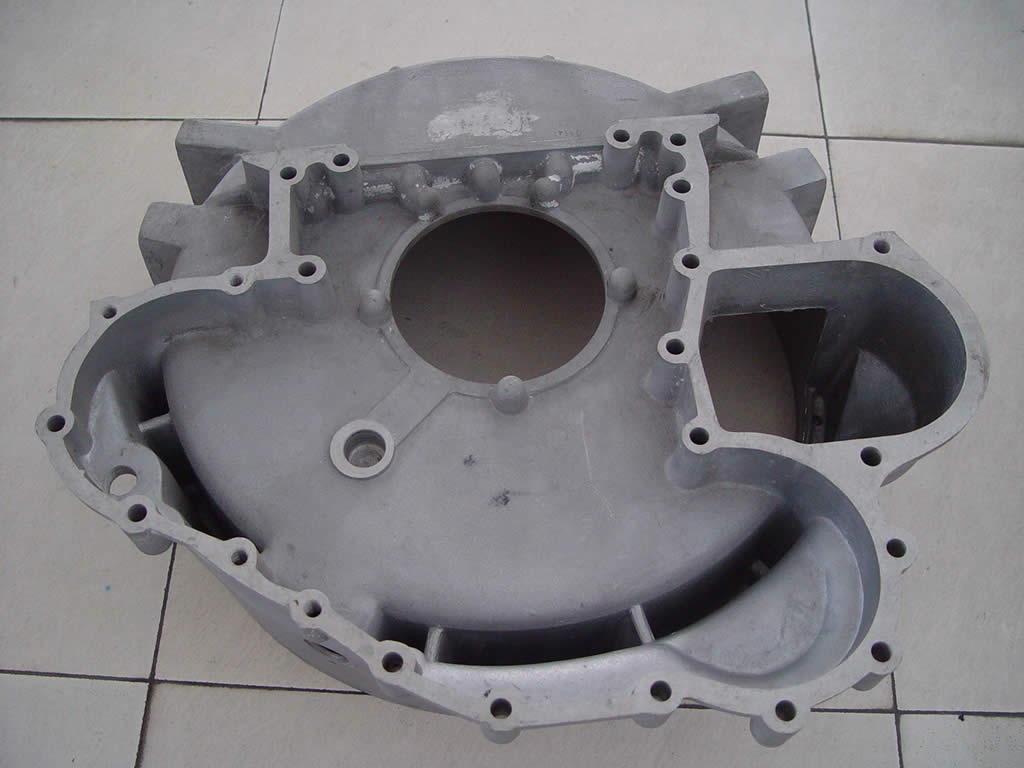

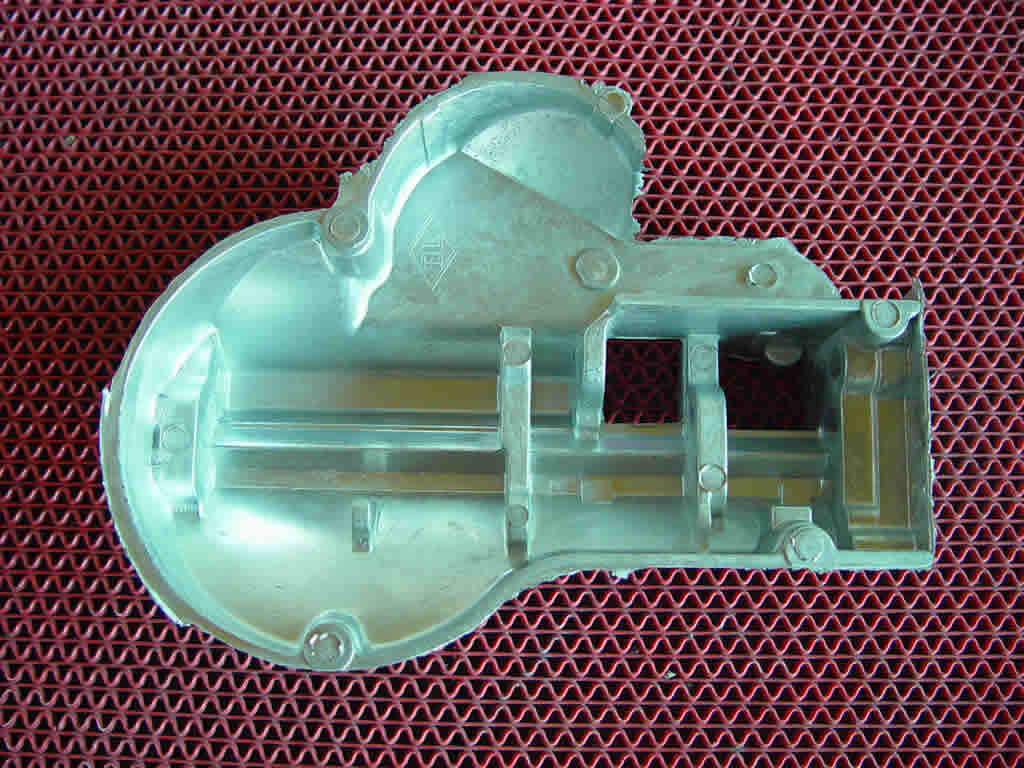

Aluminum alloy die casting 1	Al alloy die casting 1	Alumimum alloy die casting Cover	Al alloy die casting Lamp head	Zinc alloy die casting Knob	Al die casting Lamp base

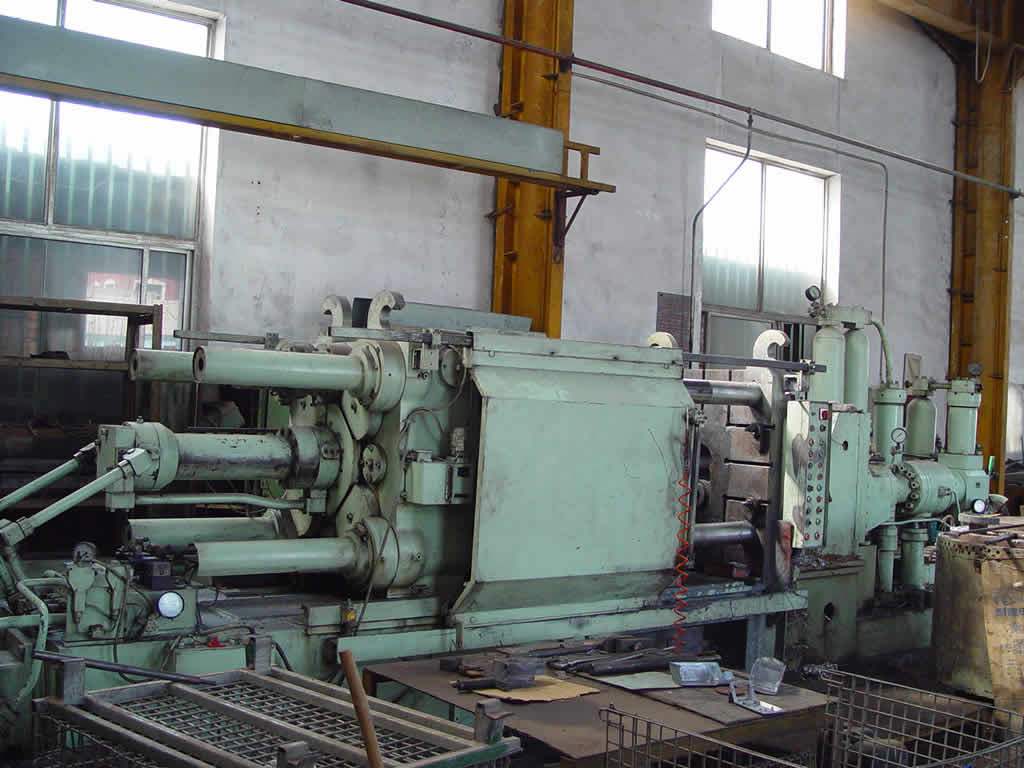

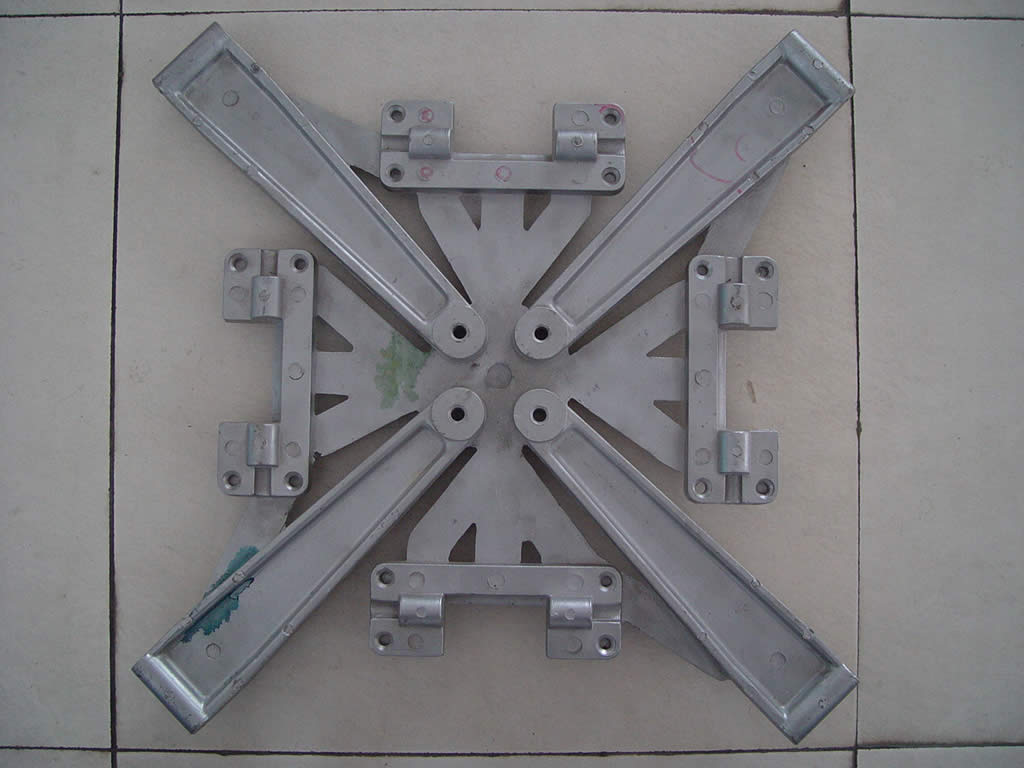

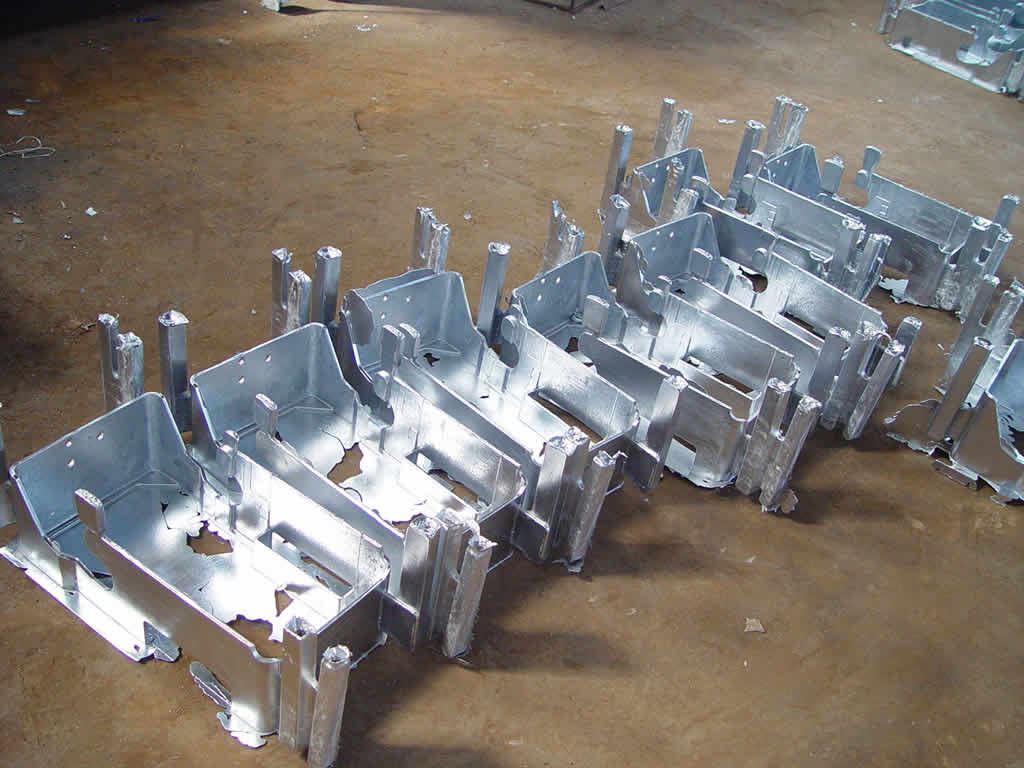

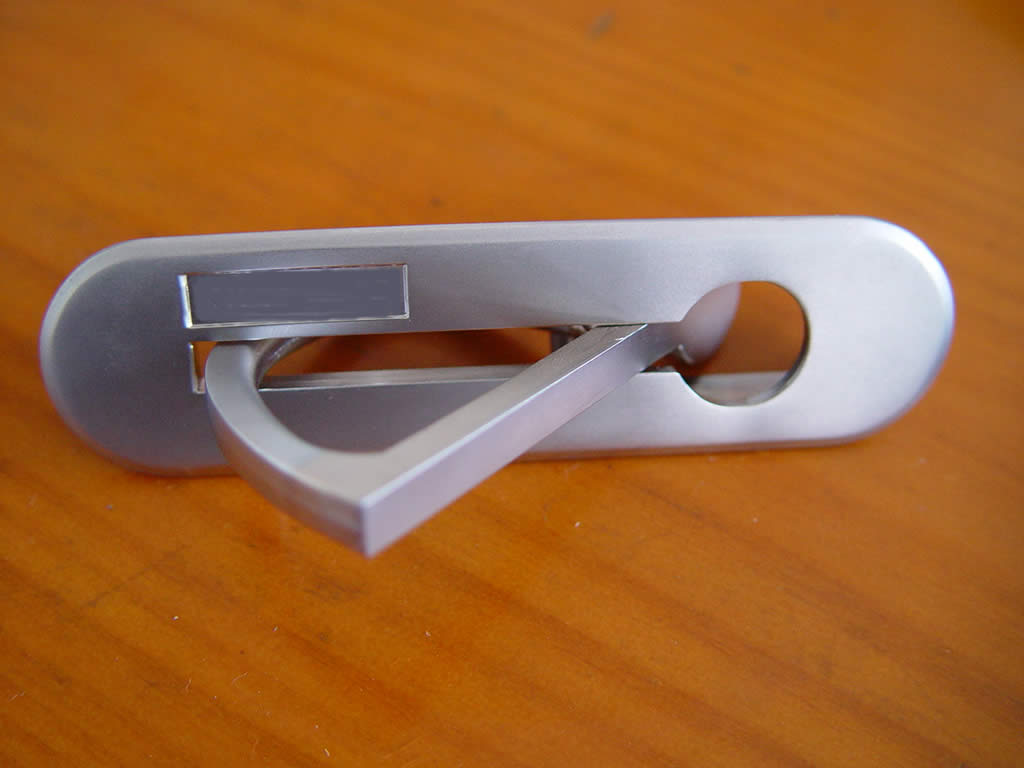

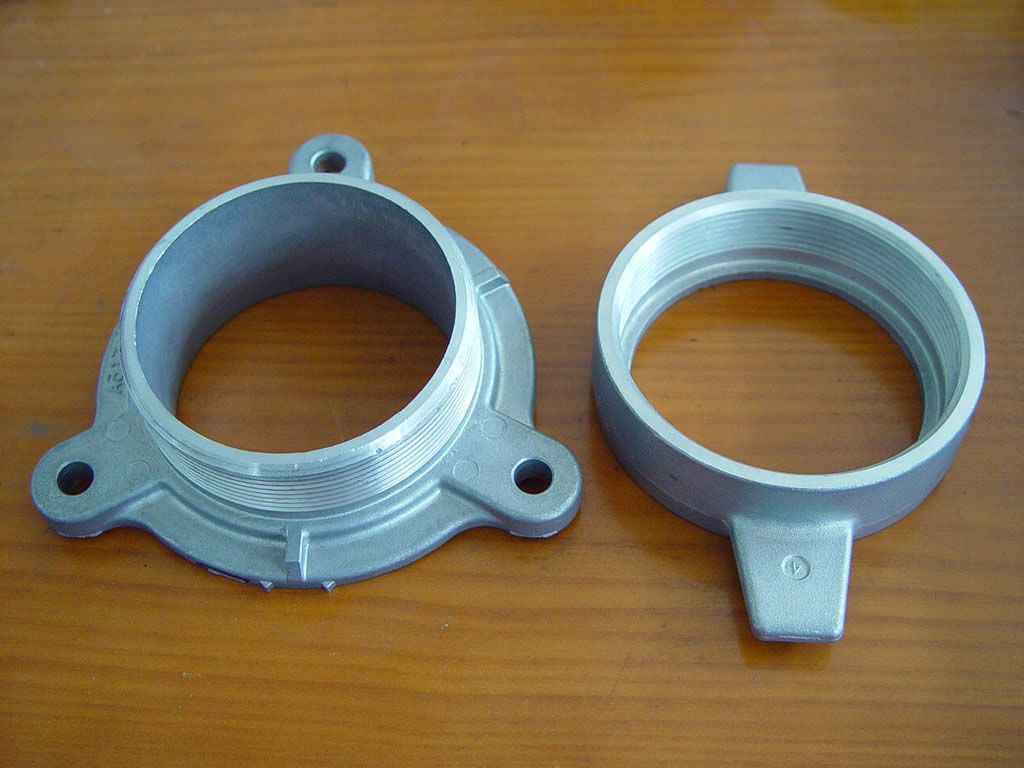

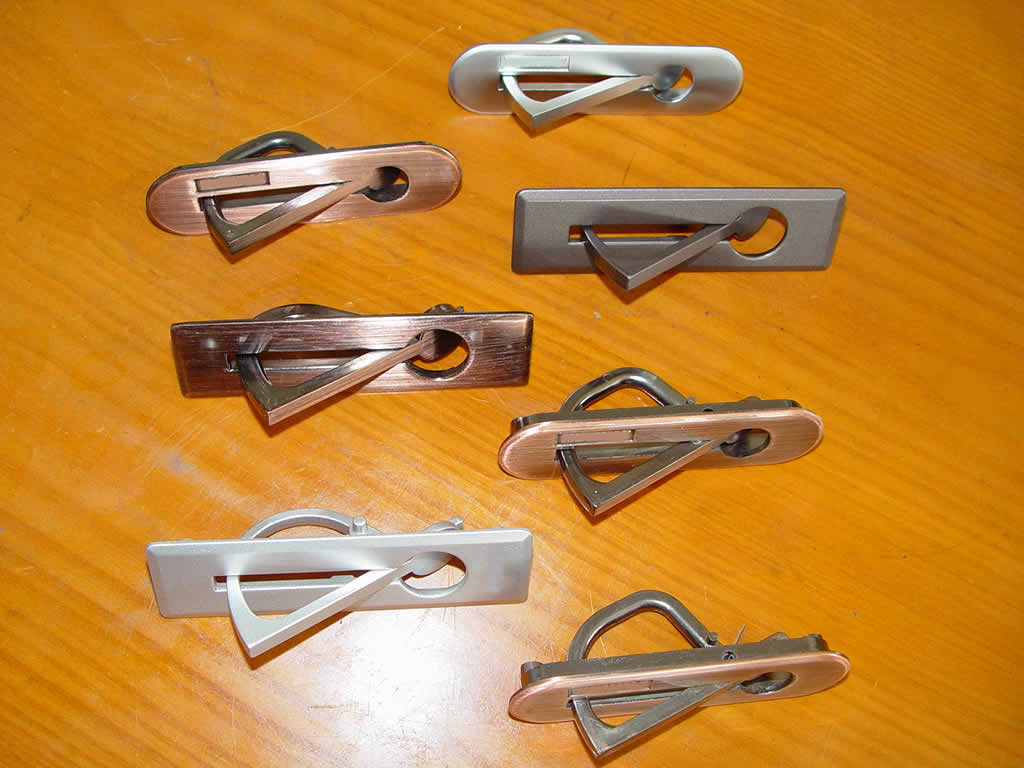

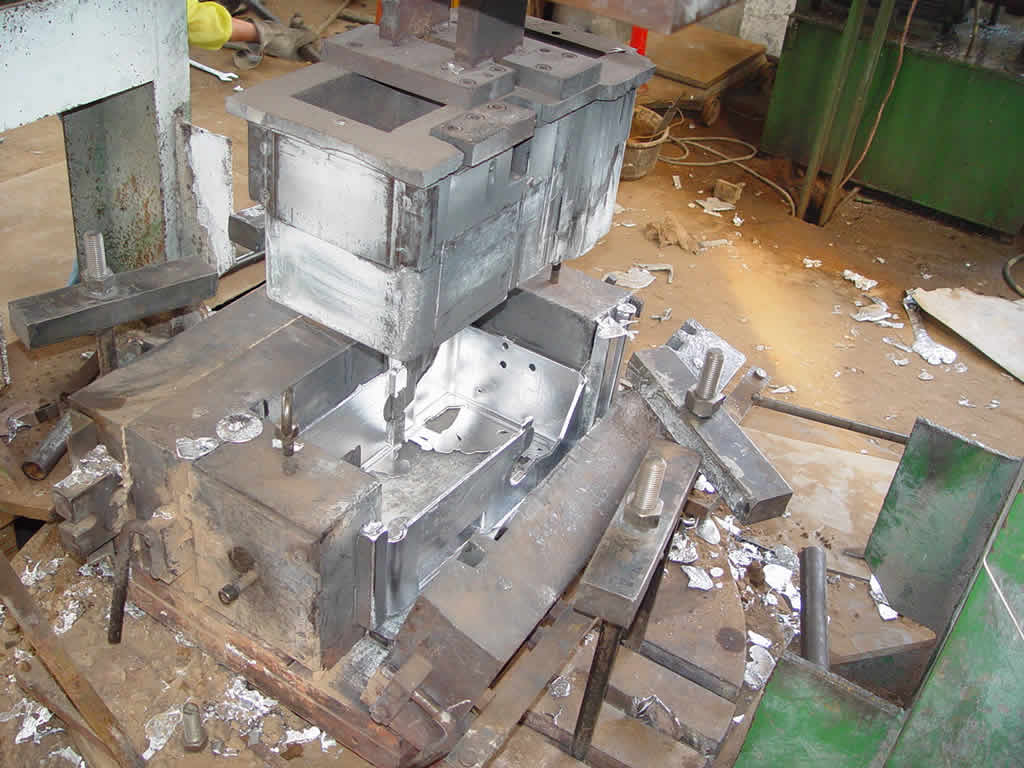

Zinc alloy die casting Coupling	Zn alloy die casting Cover	Die casting injection machine	Zinc alloy die casting Hinge	Zn alloy die casting Lamp base	Metal mold casting
Metal mold casting	Aluminum alloy die casting 2	Al alloy die casting 2	Aluminum alloy die casting 3	Zinc alloy die casting 1	Al alloy die casting 3

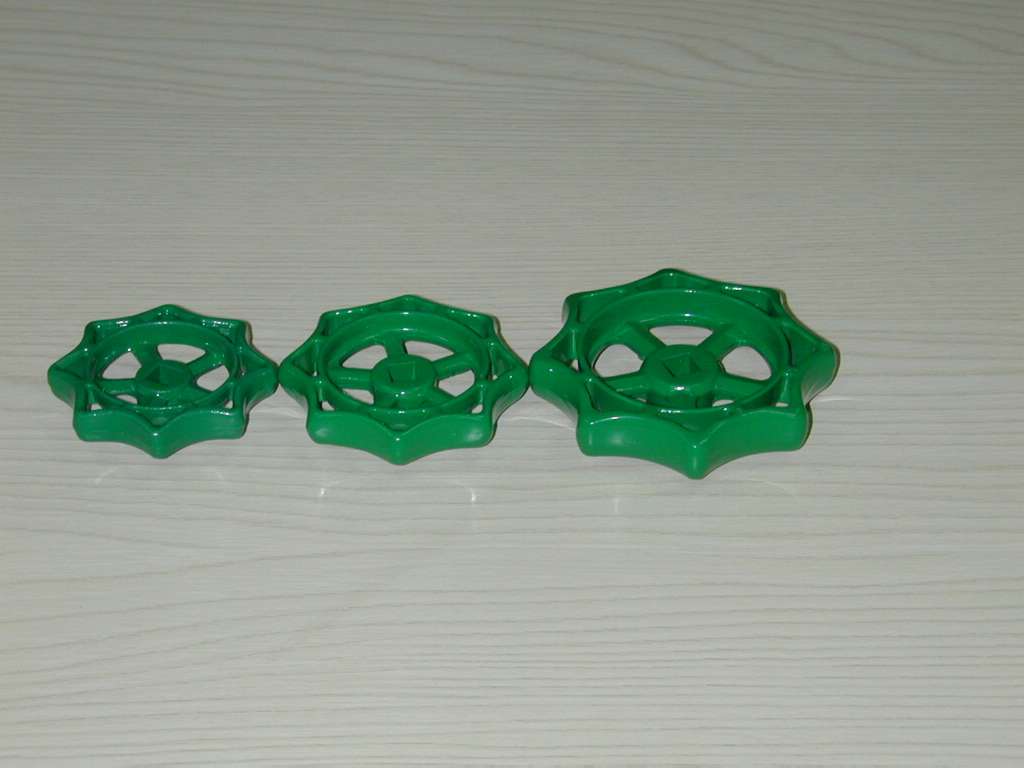

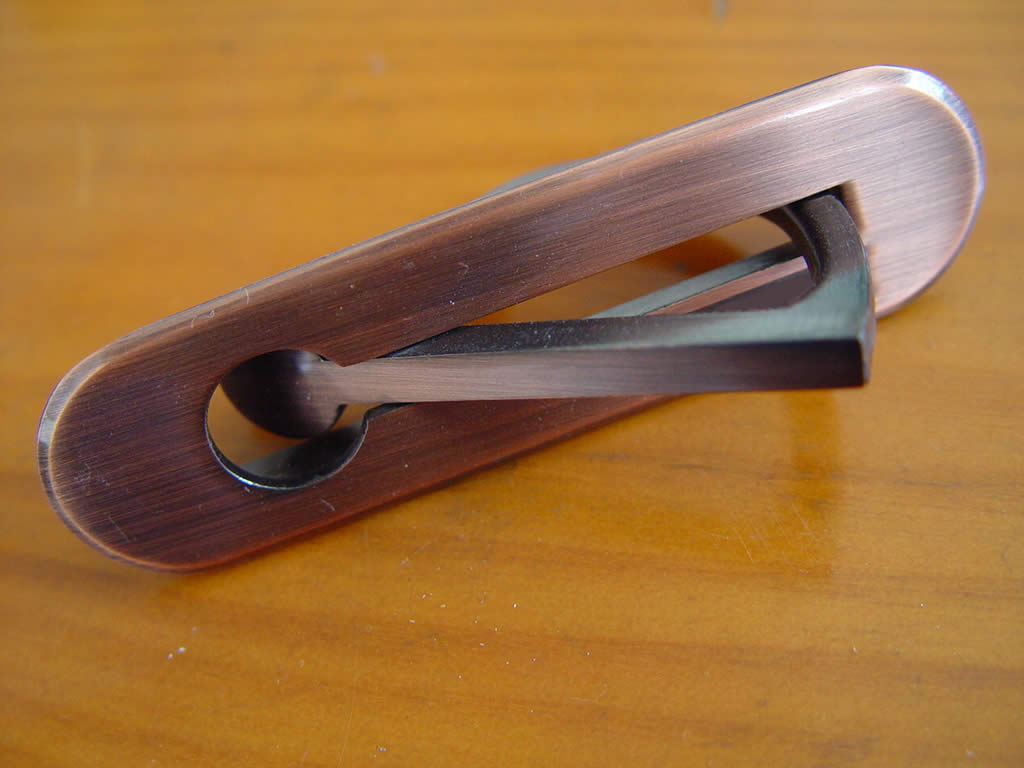

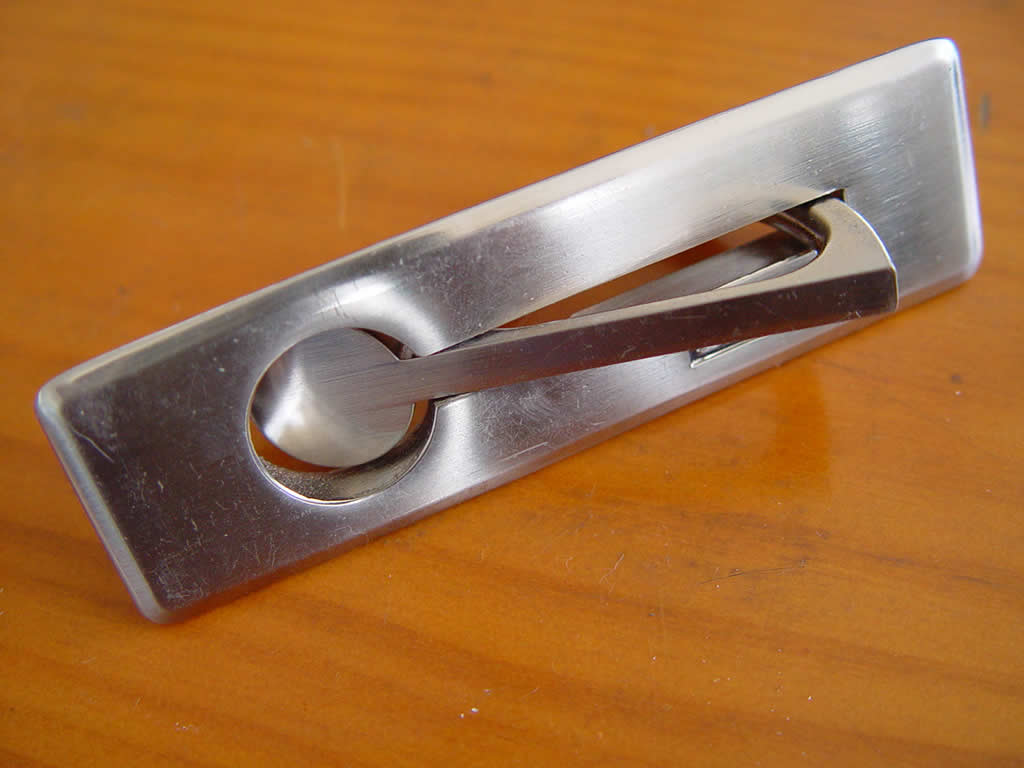

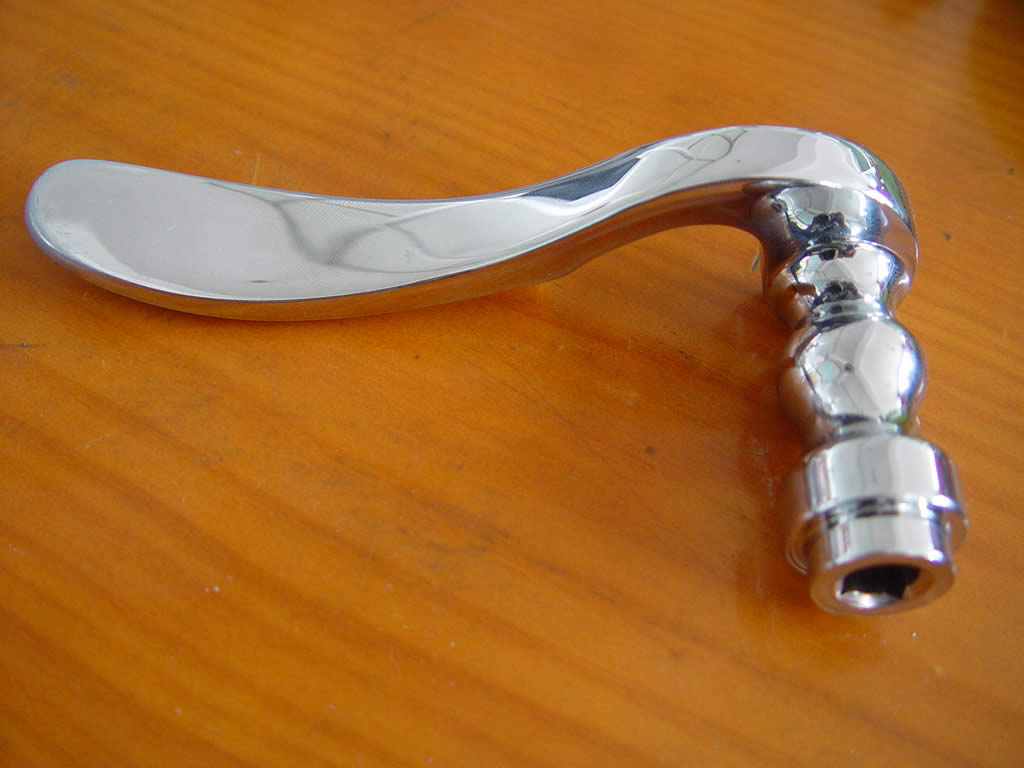

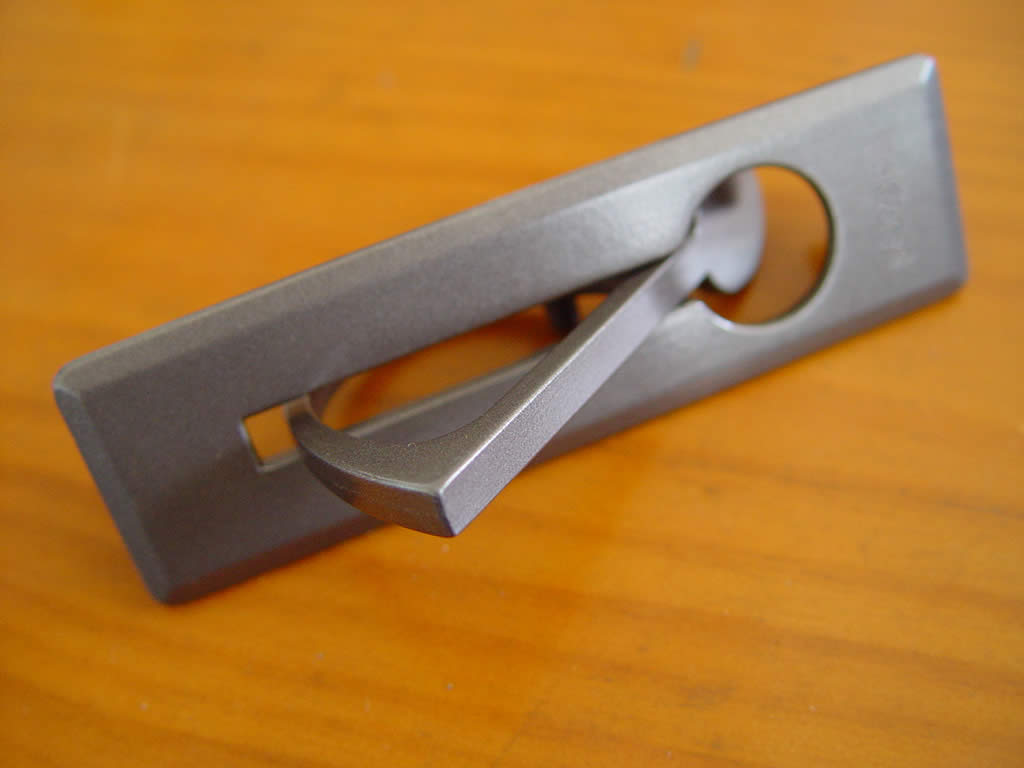

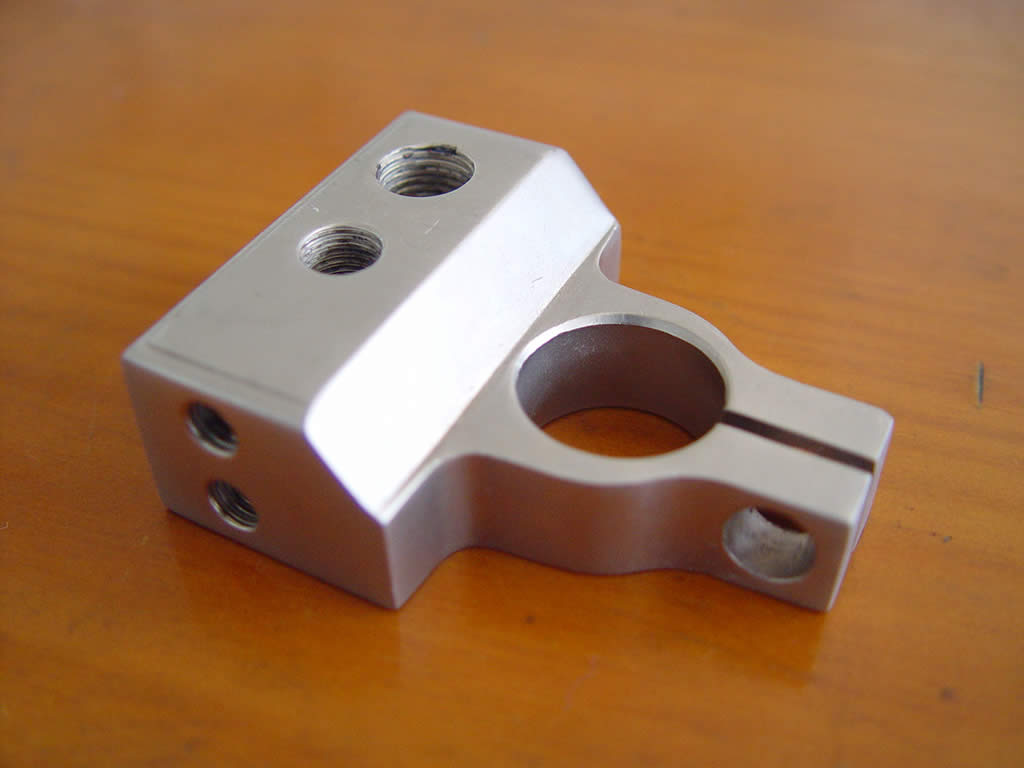

Aluminum alloy die casting 4	Zinc alloy die casting 2	Zn alloy die casting Clamp	Zamak die casting Knob 1	Zamak die casting Knob 2	Zamak die casting Knob 3
Zamak die casting  Knob 4	Zamak die casting Knob 5	Zamak die casting Knob 6

• Material:
• Aluminum alloy: JIS ADC12, DIN GDAl, GDAlSi12(Cu), ASTM A360, A380 A383, A384, A390, A413 (A13), etc
• Zinc alloy: JIS ZDC, DIN ZnAL4CuL (Zamk 5), ASTM ZA-8, ZA-12, ZA-27, etc
• Other materials also available according to customer's request.

• Required documents for offer to be provided by customer:
• Drawings with formats of IGS (3D), DWG or DXF (Auto CAD 2D), PDF, JPG and
• Standard of material (Preferable to provide Element Percentage of Al, Si, Zn, Cu, etc and Physical/Mechanical Properties of the material) and
• Technical requirements and
• Piece Weight of Rough Casting

• Production technology: Graphite crucible metallurgy, Die casting injection machines, mould (pattern) machining processing with CNC machining center, Sand casting and Metal mould casting for larger and other Aluminium & Zinc alloy castings which are not suitable for die casting technology.

• Main production equipment:
• 150~800 Metric ton die casting injection machines, low pressure metal mould casting machines
• Graphite crucibles
• Equipment for inspecting chemicals and physical properties
• De-oiling machines
• Drilling machines
• CNC machining center　

• Piece weight: 1.2g~10,000g per piece

• Finish Machined/tooled products also available according to customer's request (Drawings and standard of products should be provided by customer.)
• Powder coated, painted, anoded, Ni plated, Cr plated final products also available

• Packing: In wooden cases

• Production Capacity: 50 Mt per month

• Duration of pattern-making and sample-making: Within 45 working days (Vary subject to the complexity of products)

• Minimum order: No limit

• Delivery: Within 45 working days after signing of contract and confirmation of samples by client
