Product images of ductile iron casting/nodular iron casting/SG iron casting (cast iron)

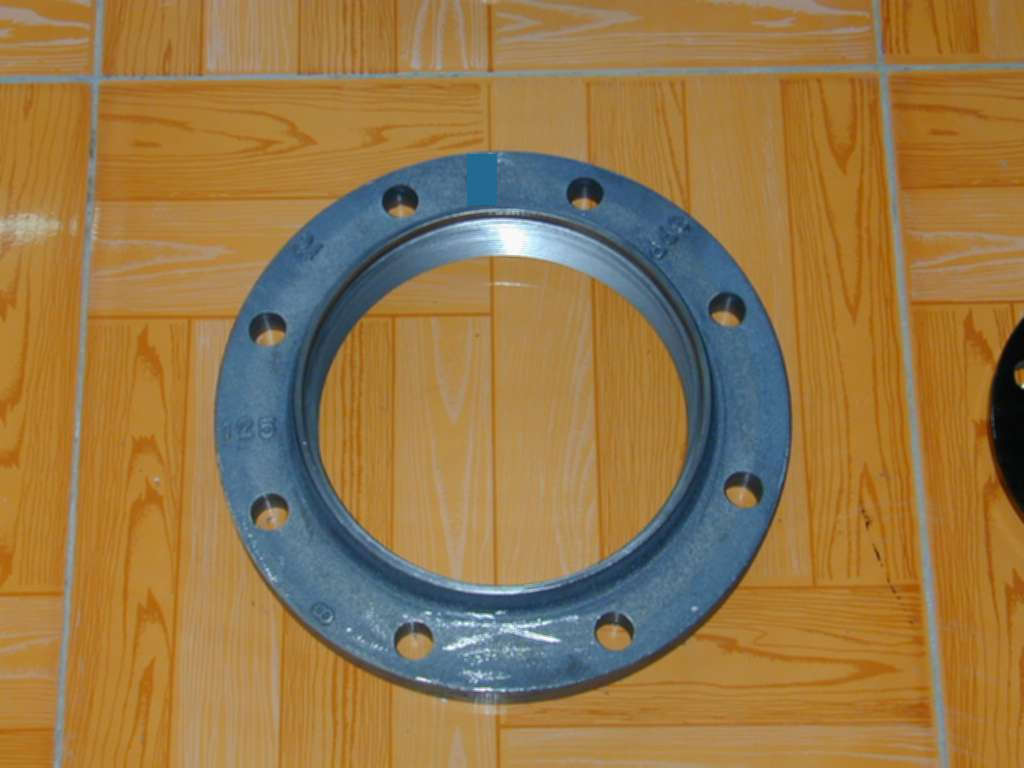

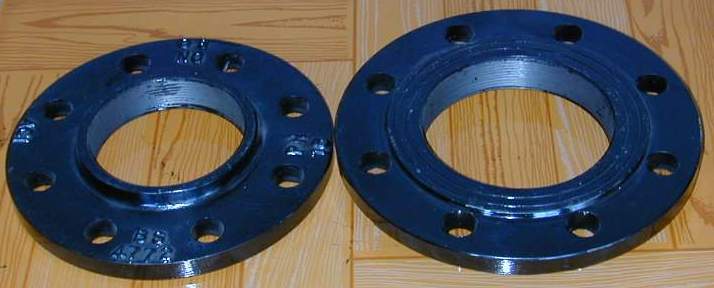

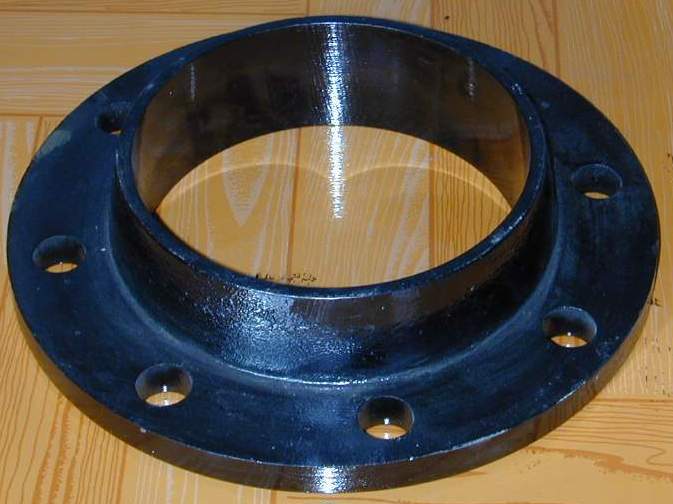

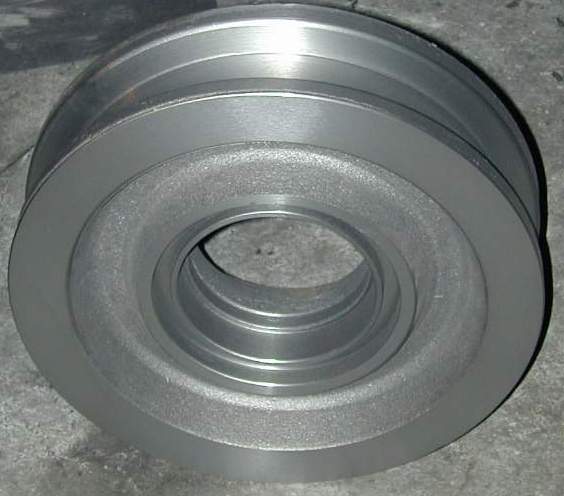

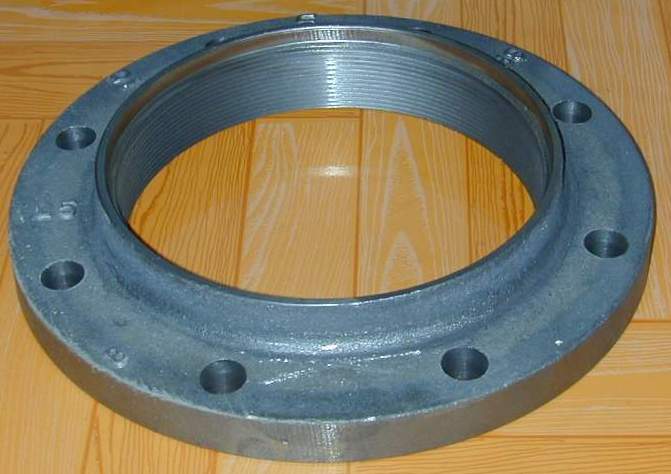

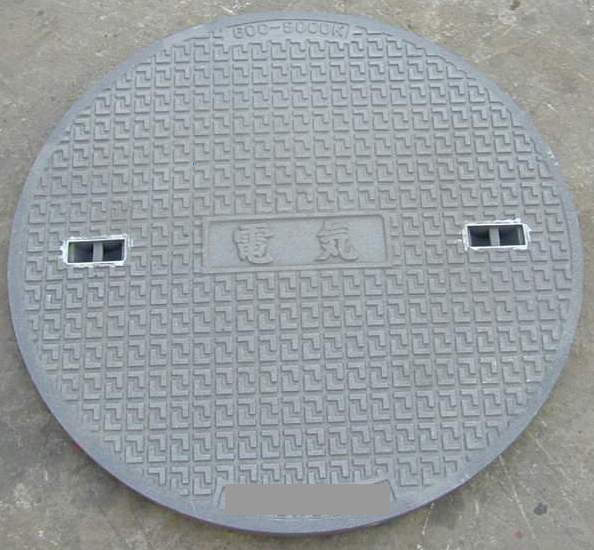

Nodular iron casting Flange 1	Ductile iron casting Flange 1	Nodular iron casting Flange 2	Ductile iron casting Flange 2	Nodular cast iron Manhole	Ductile cast iron Wheel

• Material:
• Ductile/nodular/SG Iron: JIS FCD45, FCD50 ,FCD60, FCD70, FCD80, DIN GGG-45, GGG-50, GGG-60, GGG-70, GGG-80, ASTM (UNS) 65-45-12 (F33100), 80-55-06 (F33800), 80-60--03 (F34100), 100-70-03 (F34800), 120-90-02 ( F36200), F41000 to F41005
• Other materials also available according to customer's request.

• Required documents for offer to be provided by customer:
• Drawings with formats of IGS (3D), DWG or DXF (Auto CAD 2D), PDF, JPG and
• Standard of material (Preferable to provide Element Percentage of C, Si, Mn, P, S, etc and Physical/Mechanical Properties of the material) and
• Technical requirements and
• Piece Weight of Rough Casting

• Production technology: Furan resin sand casting, green sand casting

• Main production equipment:
• Sand mixer, sand processing/treatment equipment
• AVM (air vibration molding machines), other molding machines (F-1)
• Core-shooting machines for making shell sand cores
• Cupolas
• Intermediate frequency electrical induction furnaces
• CE meter (C-Si equivalent weight meter)
• Equipment for inspecting chemicals and physical properties
• Shot blast machines
• Heat treatment (Annealing) furnaces

• Piece weight: 2Kg~2,000Kg per piece 　

• Finish Machined/tooled products also available according to customer's request (Drawings and standard of products should be provided by customer.)

• Packing: In wooden cases

• Production capacity: 500 Mt per month

• Duration of pattern-making and sample-making: Within 45 working days (Vary subject to the complexity of products)

• Minimum order: 1x20' FCL (Full Container Load)

• Delivery: Within 45 working days after signing of contract and confirmation of samples by client
