Images of main products and equipment of lost wax casting & investment castinG (Mainly Export ot Korea, Japan, France, etc.)

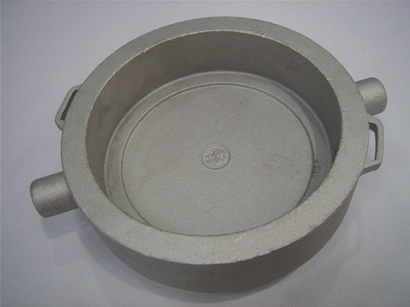

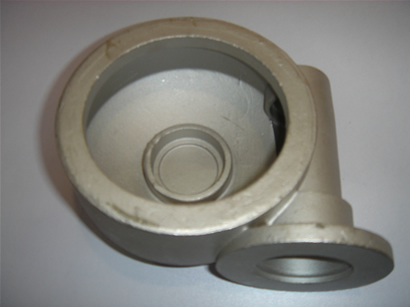

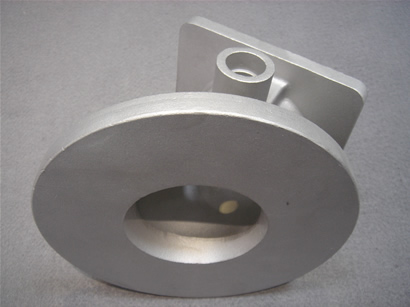

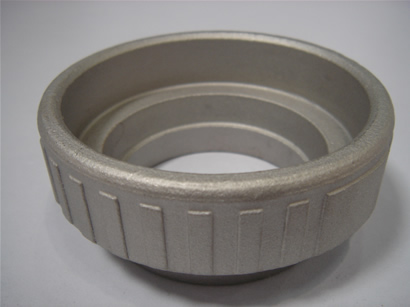

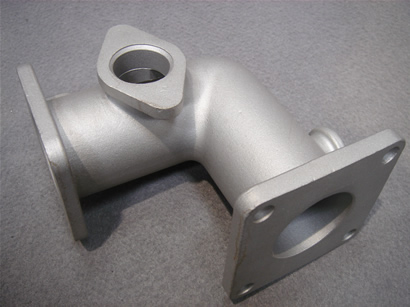

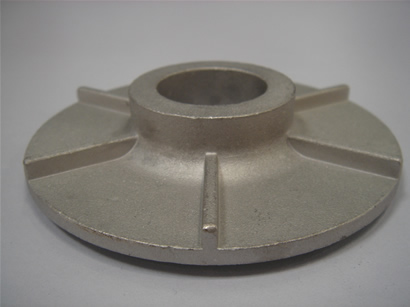

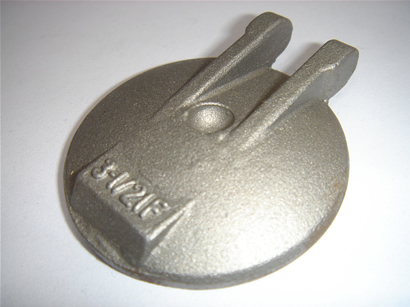

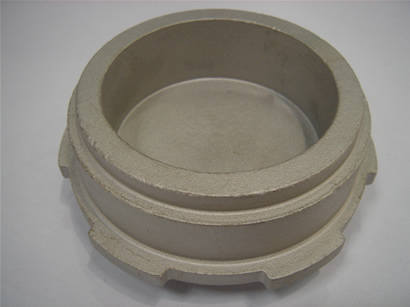

Adapter - Stainless Steel Investment Casting	Adapter - Stainless Steel Investment Casting	Adapter - Stainless Steel Investment Casting	Cap - Stainless Steel Investment Casting	Cap - Stainless Steel Investment Casting	Cap - Stainless Steel Investment Casting

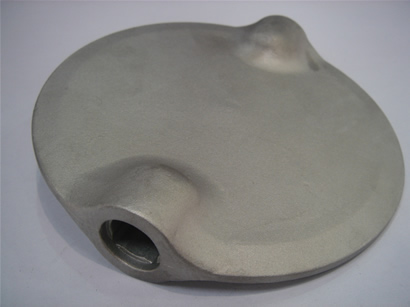

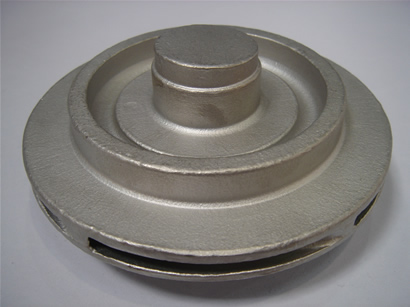

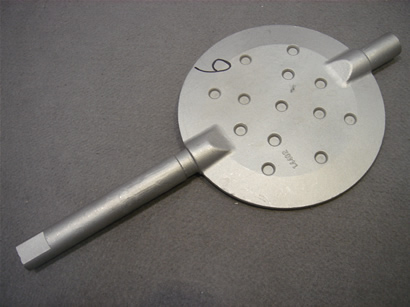

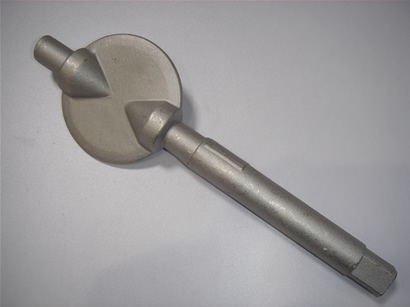

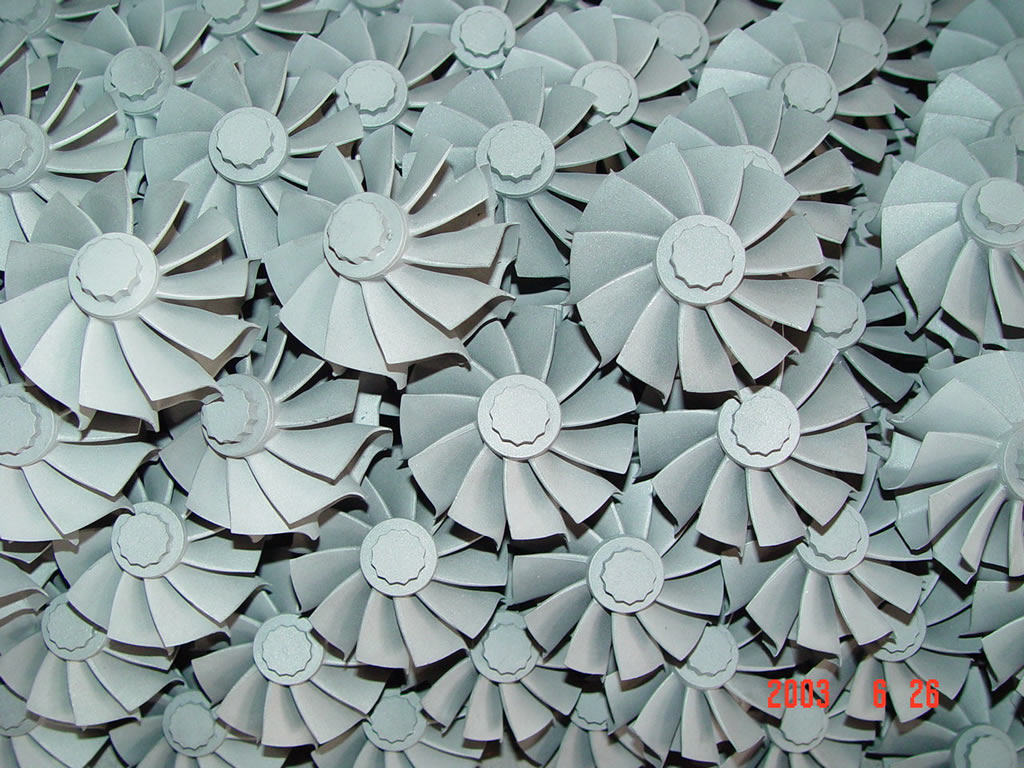

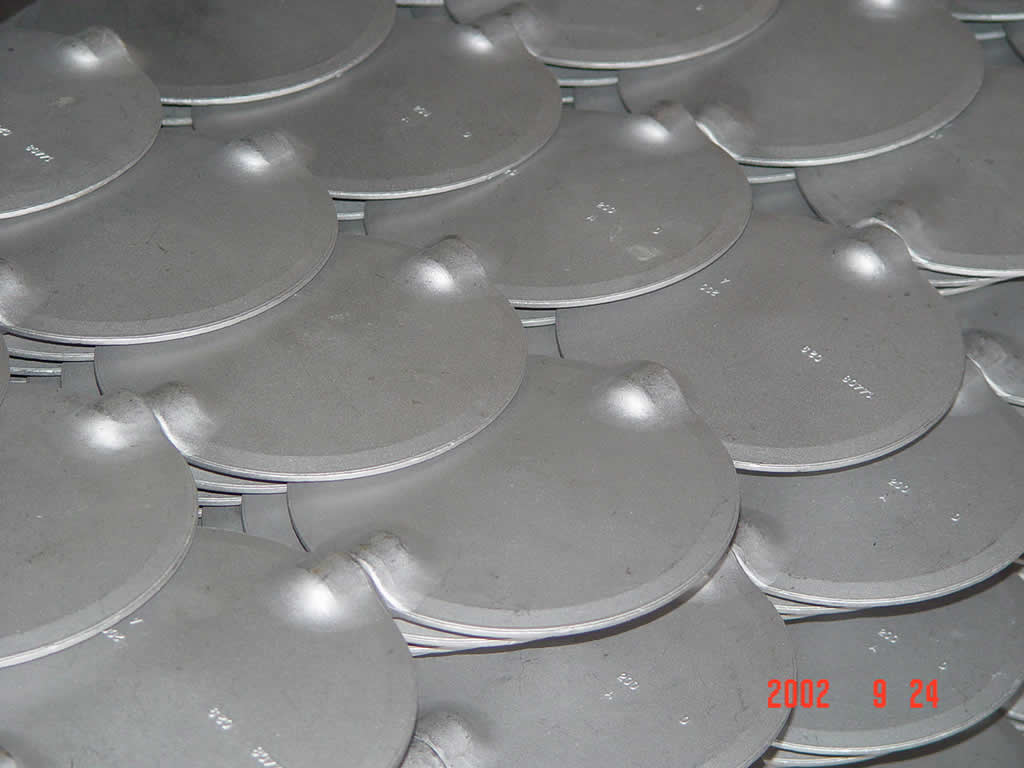

Cap - Stainless Steel Investment Casting	Cap - Stainless Steel Investment Casting	Disc - Stainless Steel Investment Casting	Disc - Stainless Steel Investment Casting	Disc - Stainless Steel Investment Casting	Impeller - Stainless Steel Investment Casting

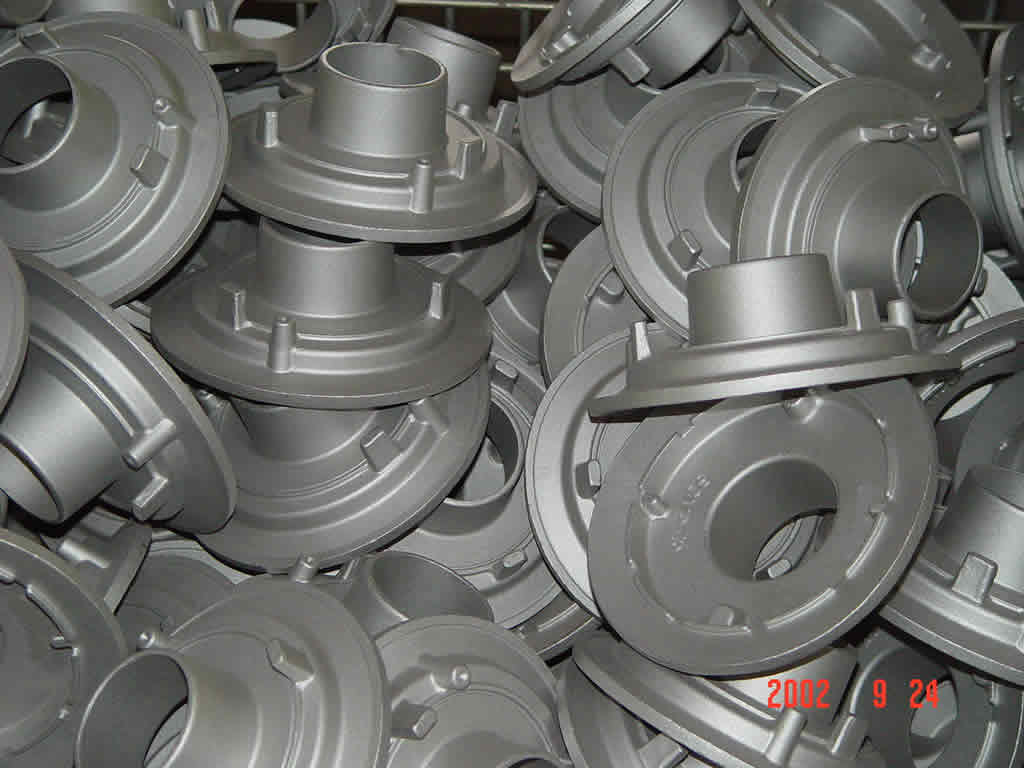

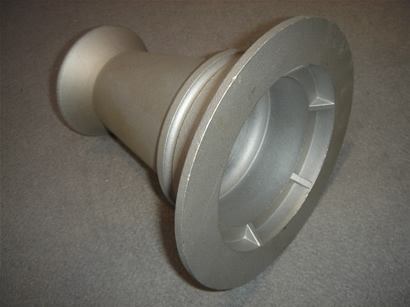

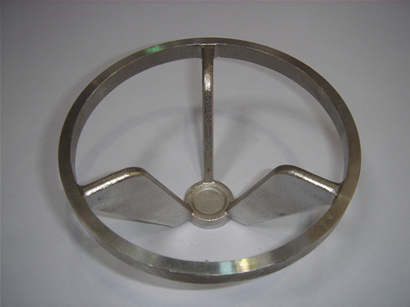

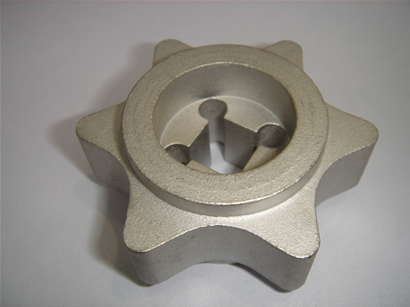

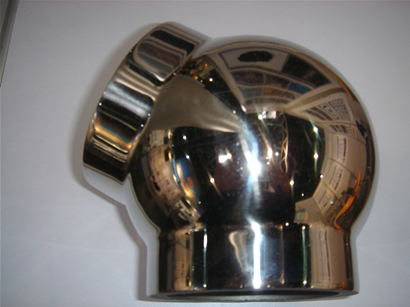

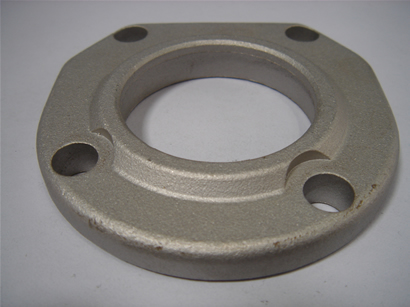

Flange - Stainless Steel Investment Casting	Flange - Stainless Steel Investment Casting	Handle - Stainless Steel Investment Casting	Handle - Stainless Steel Investment Casting	Head - Stainless Steel Investment Casting	Venturi - Stainless Steel Investment Casting

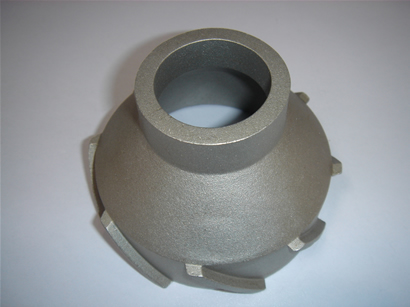

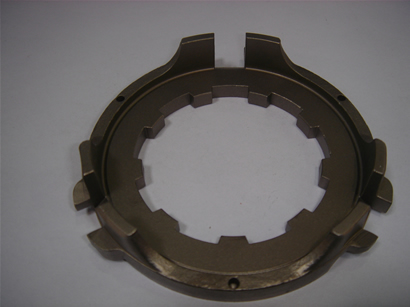

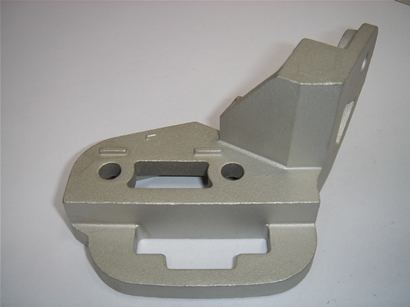

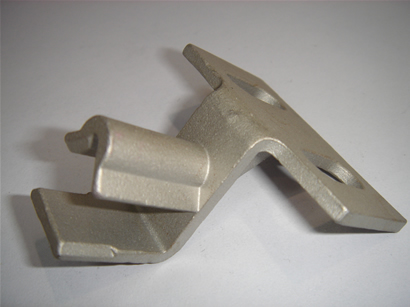

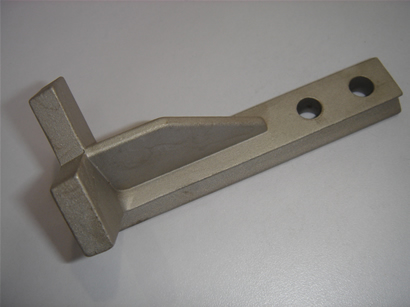

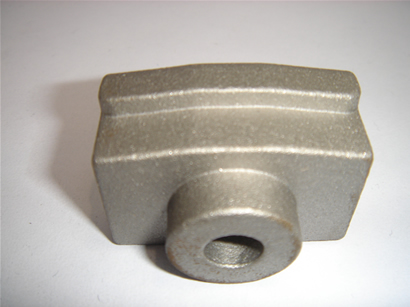

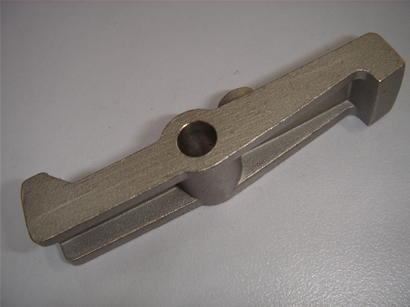

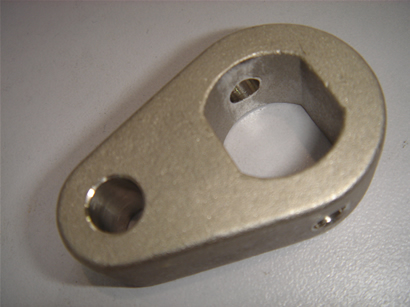

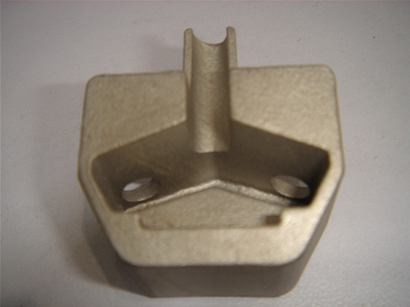

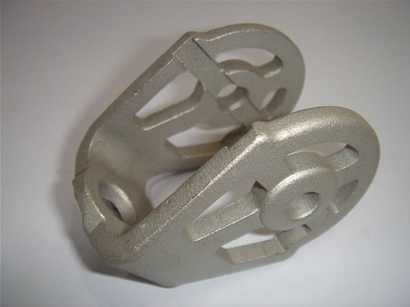

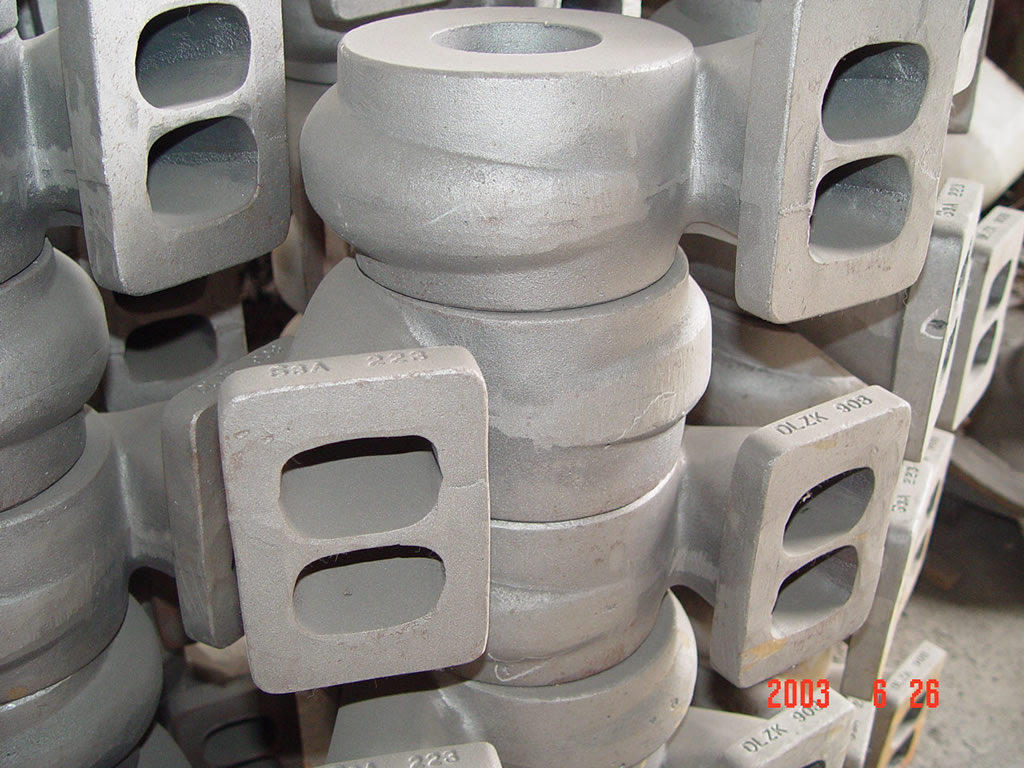

Part - Alloy Steel Investment Casting	Part - Alloy Steel Investment Casting	Part - Alloy Steel Investment Casting	Part - Alloy Steel Investment Casting	Part - Alloy Steel Investment Casting	Part - Alloy Steel Investment Casting

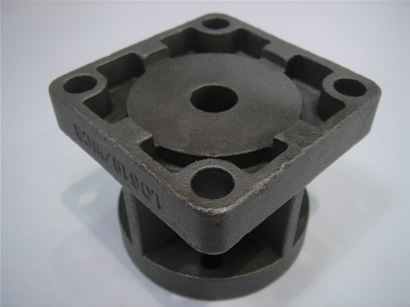

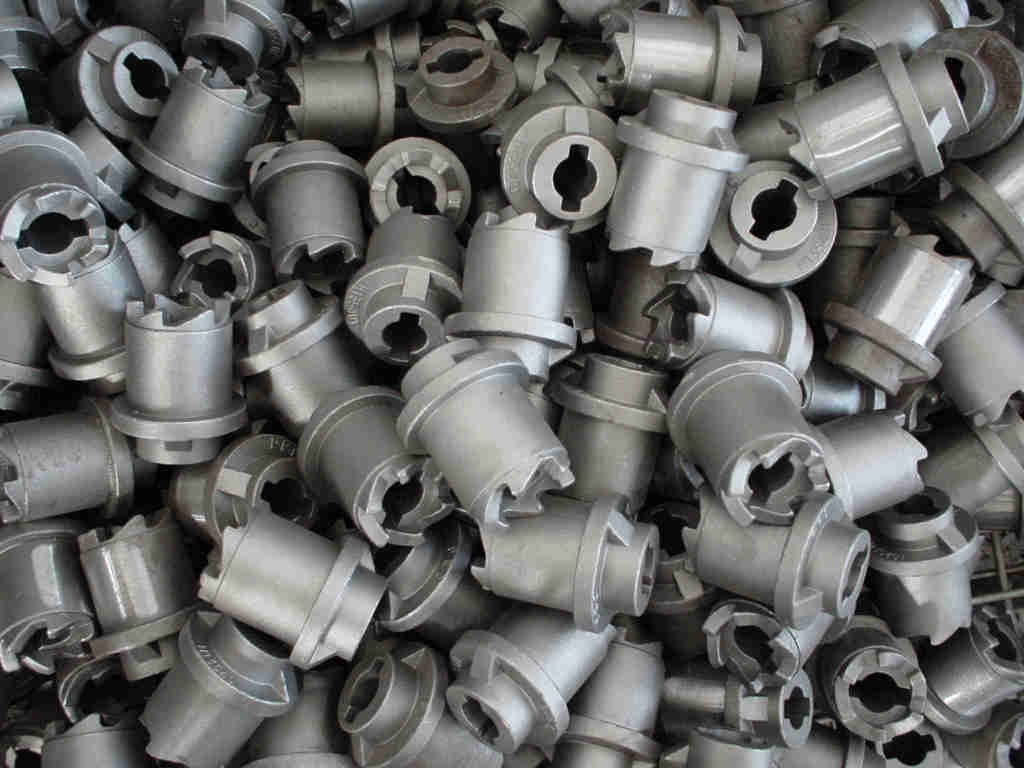

Part - Carbon Steel Investment Casting	Part - Carbon Steel Investment Casting	Part - Carbon Steel Investment Casting	Part - Carbon Steel Investment Casting	Part - Carbon Steel Investment Casting	Part - Carbon Steel Investment Casting

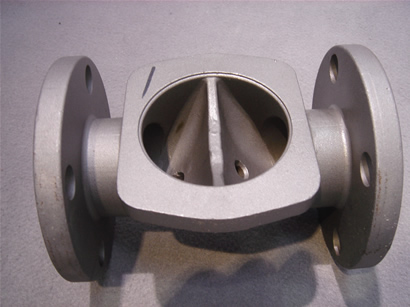

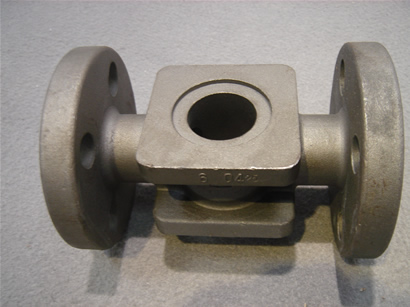

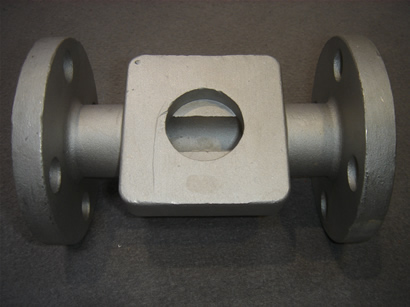

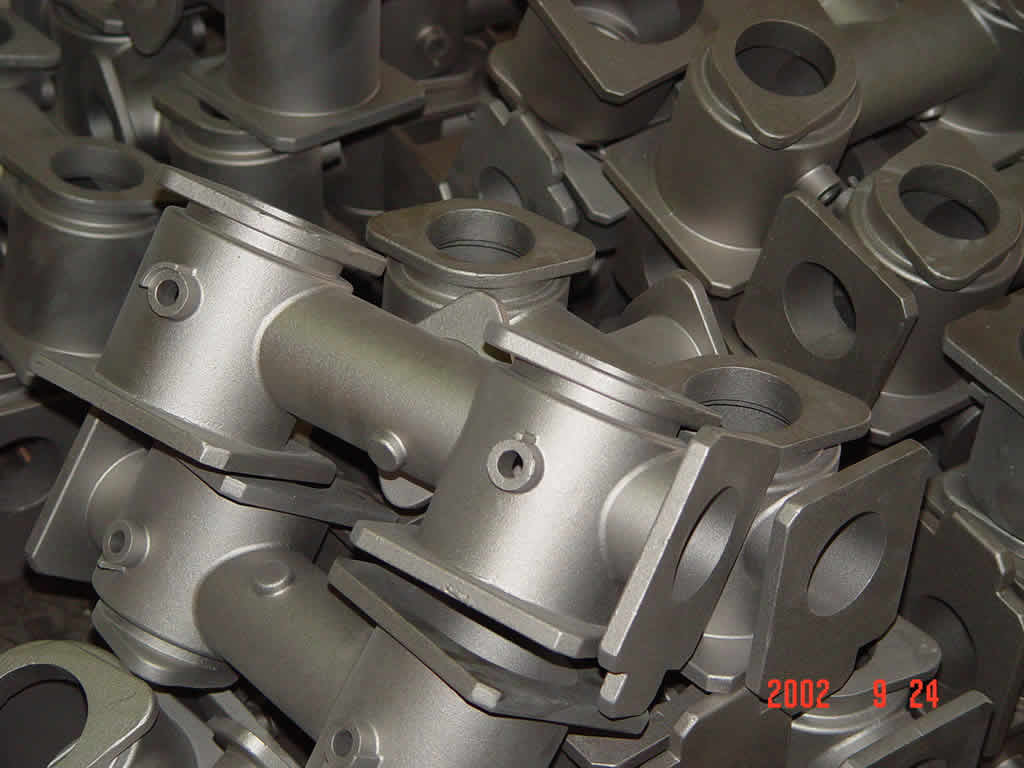

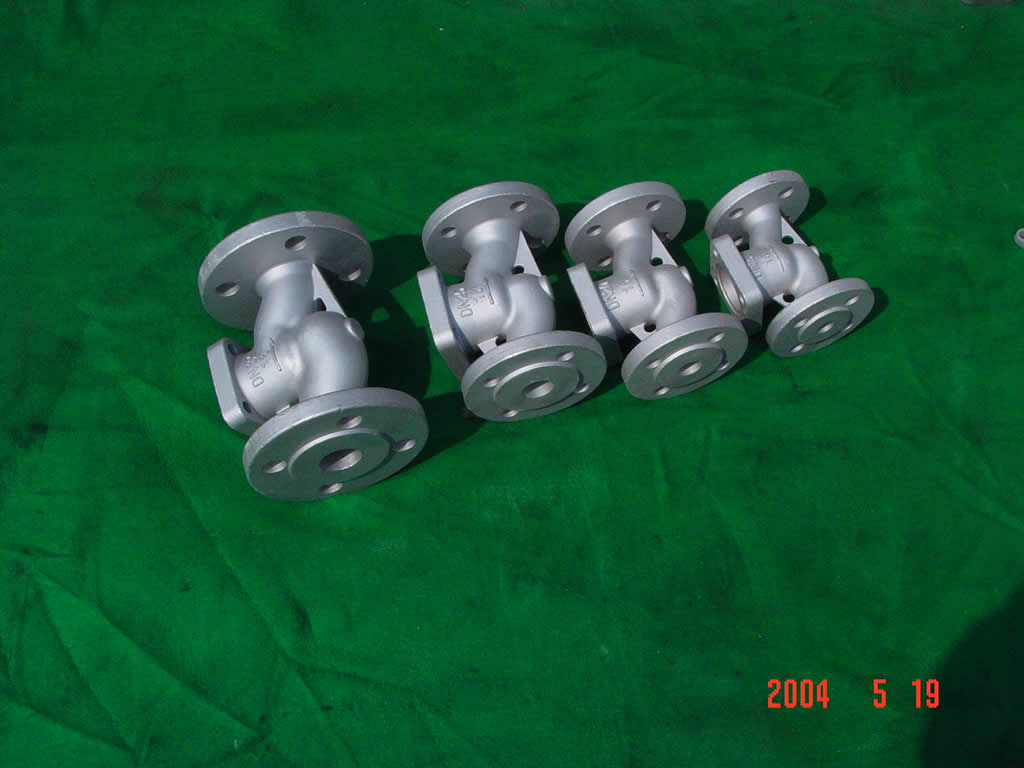

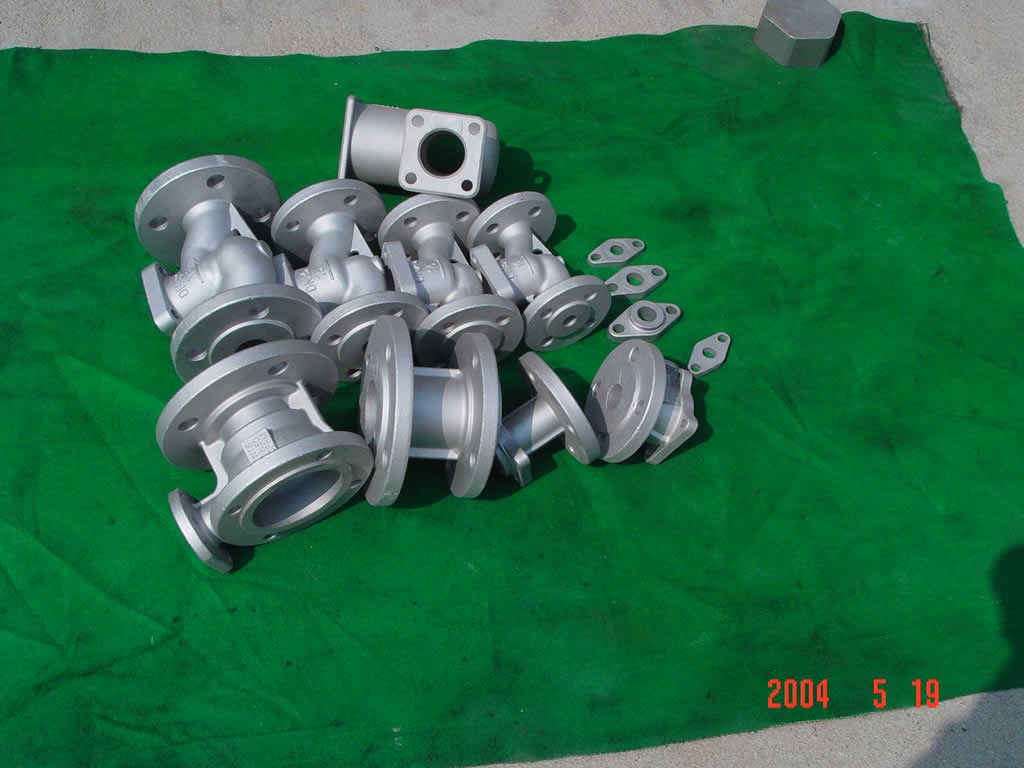

Part - Alloy Steel Lost Wax Casting	Valve Body - Alloy Steel Lost Wax Casting	Valve Body - Alloy Steel Lost Wax Casting	Valve Body - Alloy Steel Lost Wax Casting	Valve Body - Alloy Steel Lost Wax Casting	Valve Body - Alloy Steel Lost Wax Casting

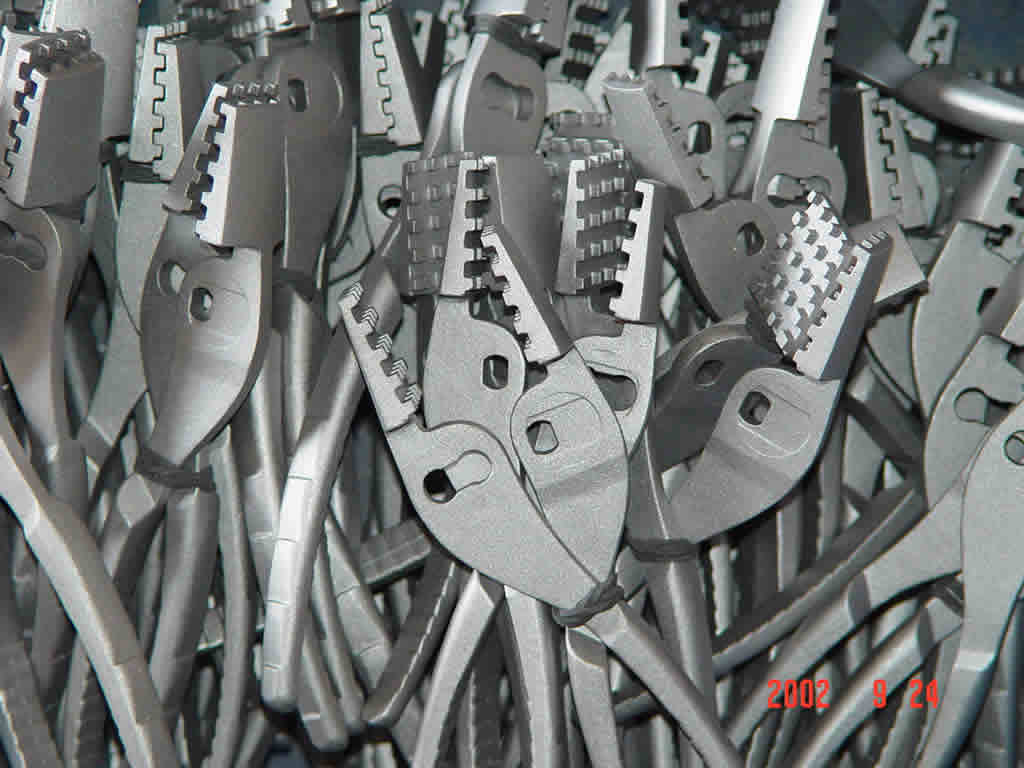

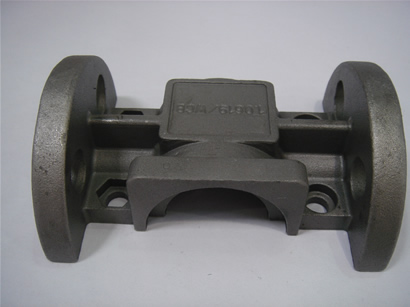

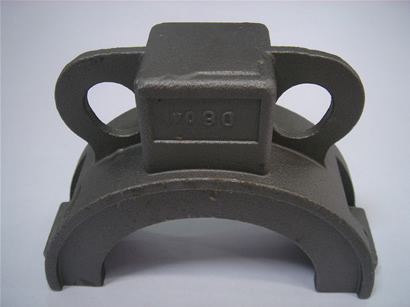

Valve Body - Carbon Steel Lost Wax Casting	Valve Body - Carbon Steel Lost Wax Casting	Valve Body - Carbon Steel Lost Wax Casting	Valve Body - Carbon Steel Lost Wax Casting	Part - Carbon Steel Lost Wax Casting	Wrench - Carbon Steel Lost Wax Casting

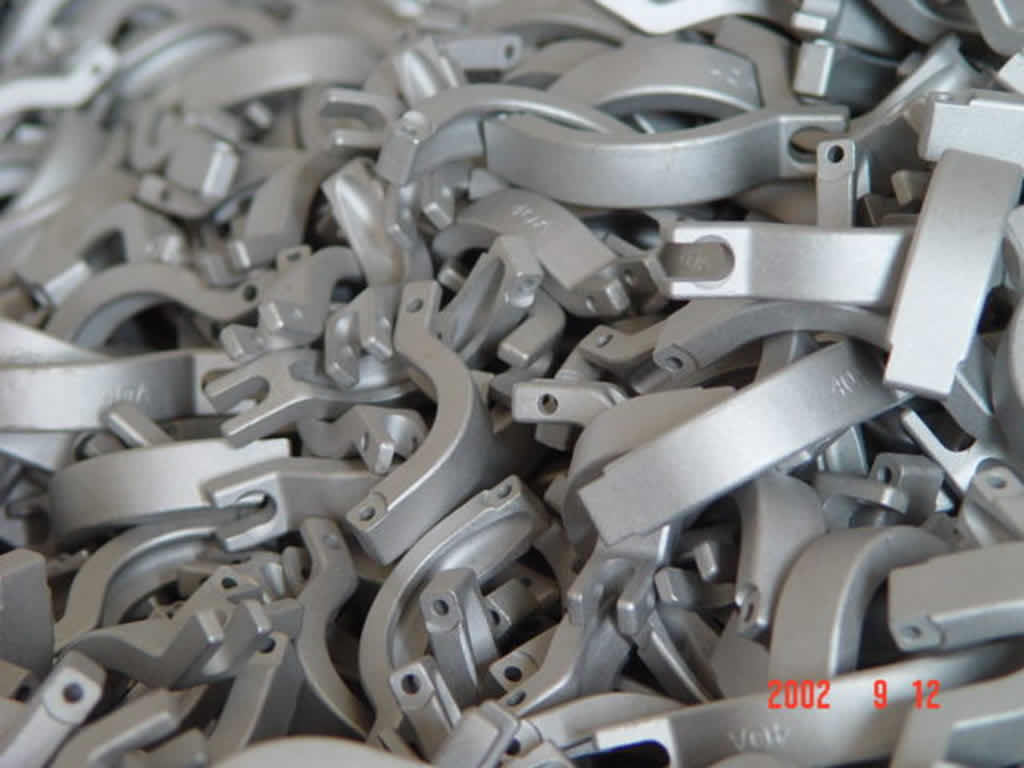

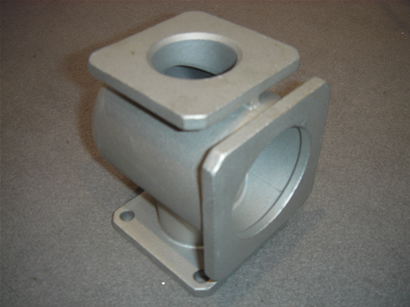

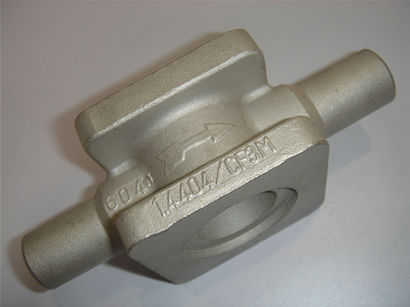

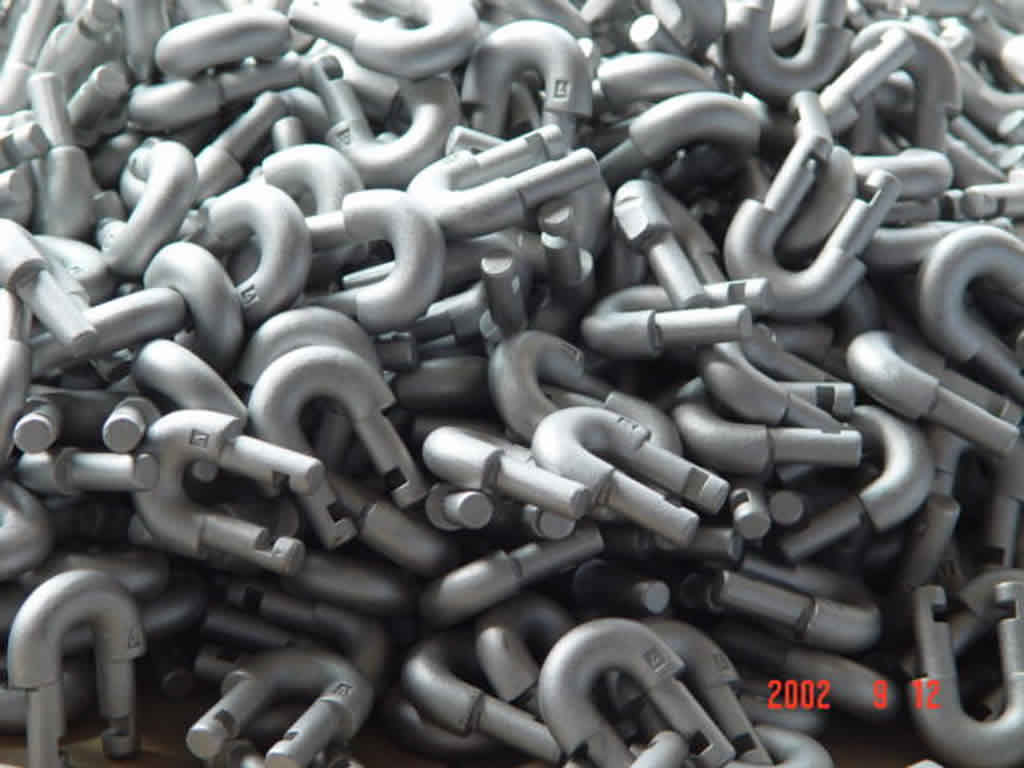

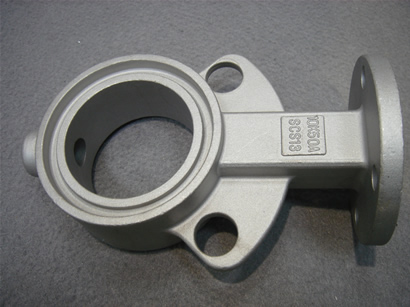

Valve Body - Stainless Steel Lost Wax Casting	Valve Body - Stainless Steel Lost Wax Casting	Base - Stainless Steel Lost Wax Casting	Hook - Stainless Steel Lost Wax Casting	Clip - Stainless Steel Lost Wax Casting	Elbow - Stainless Steel Lost Wax Casting

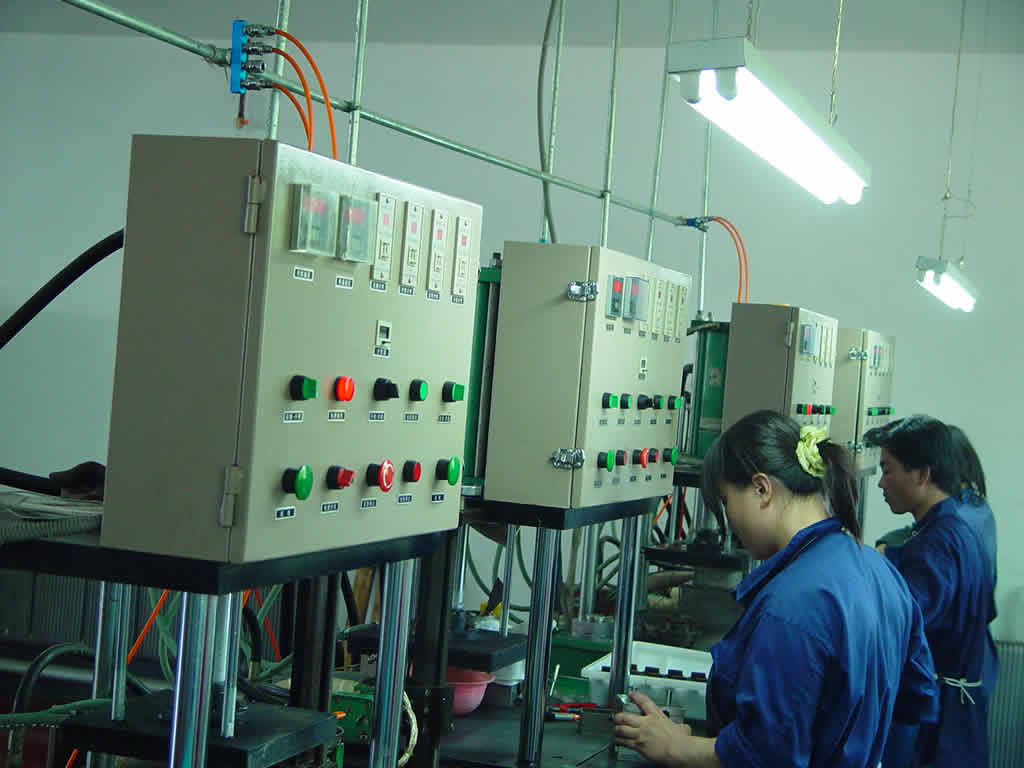

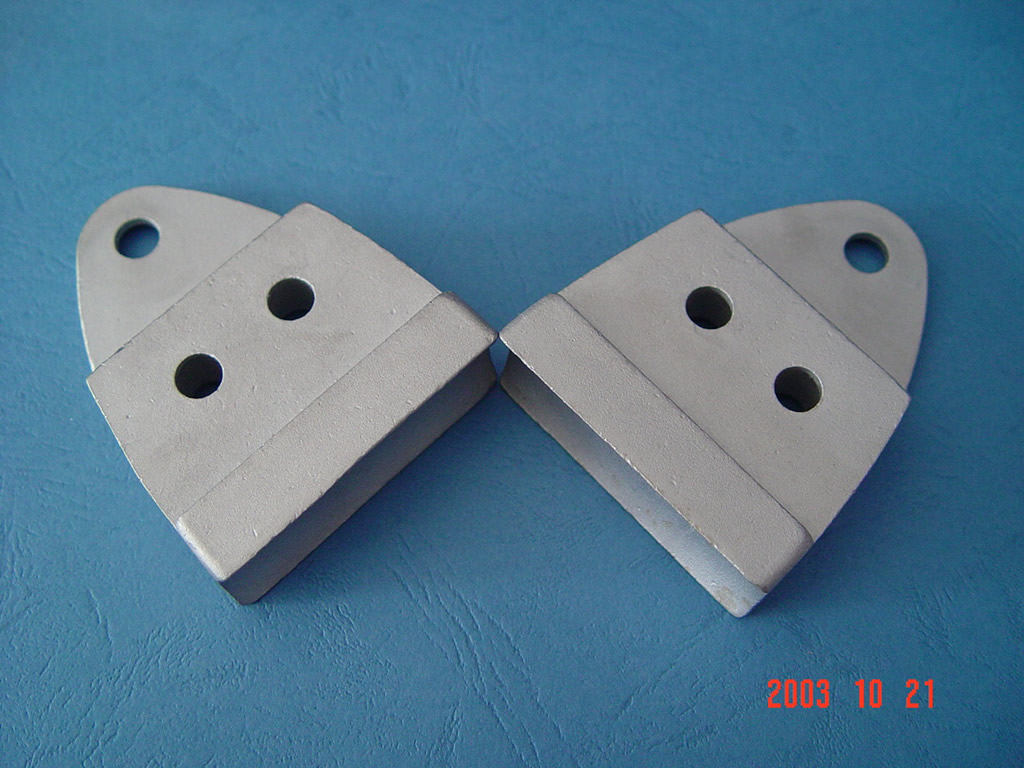

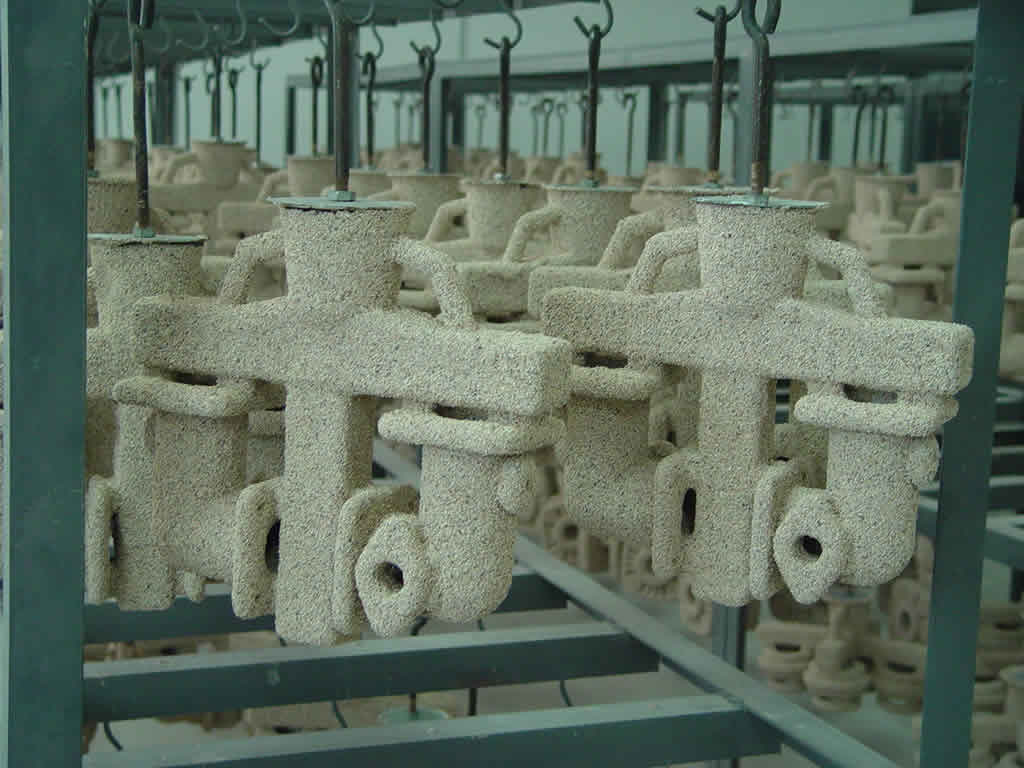

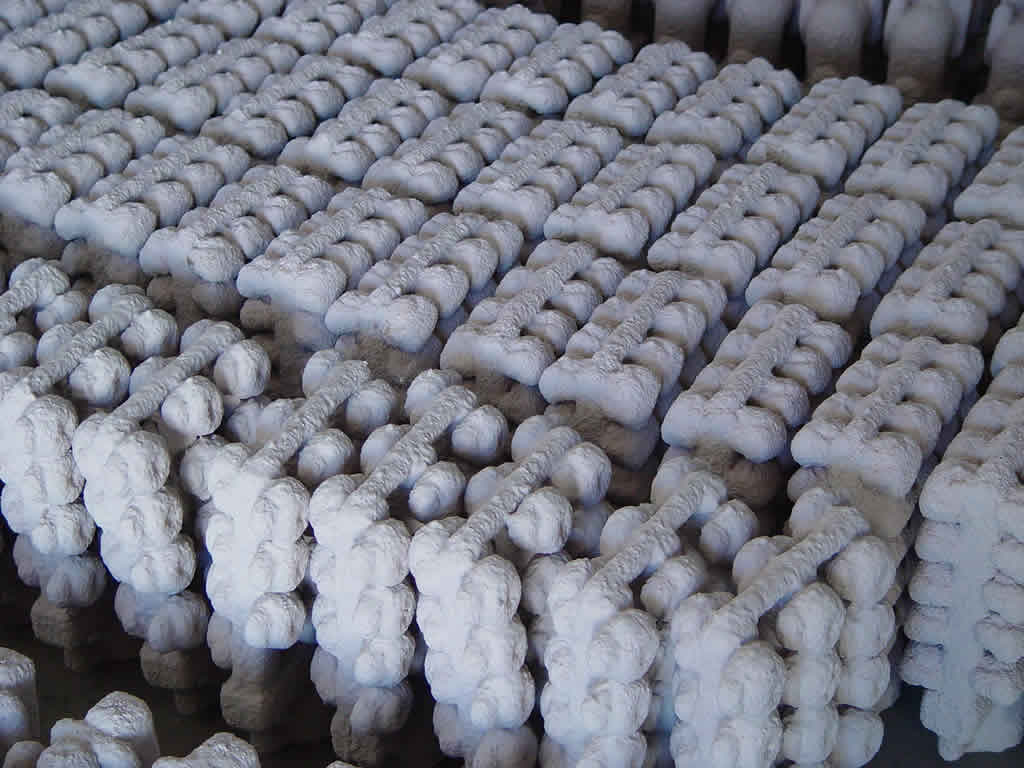

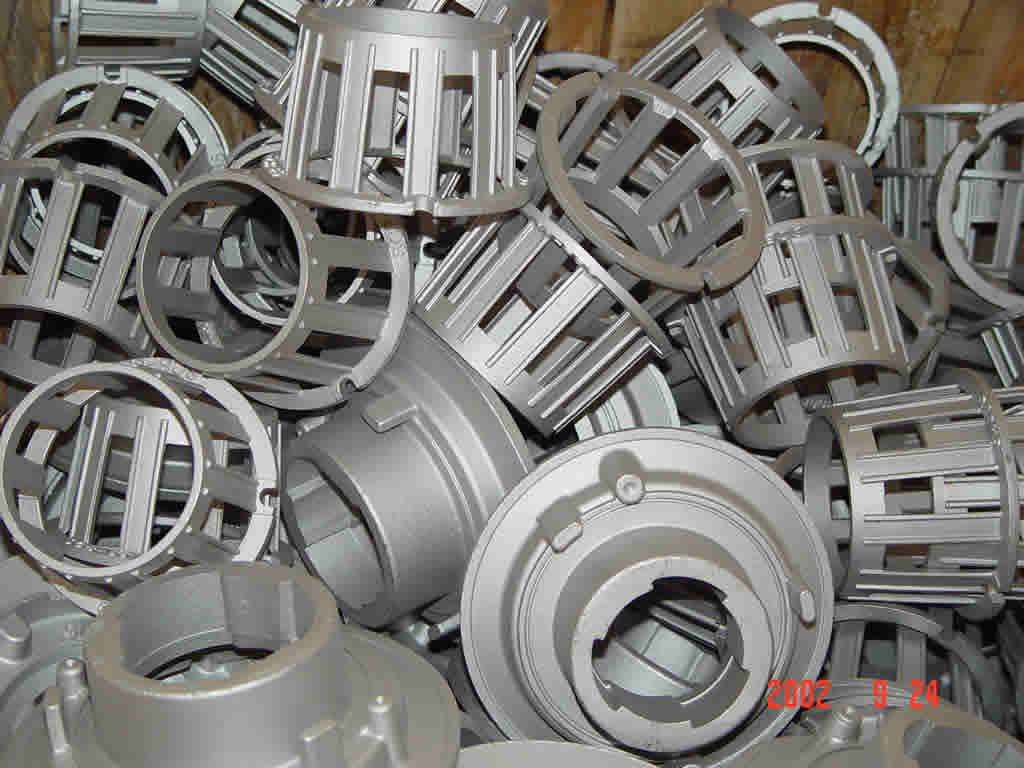

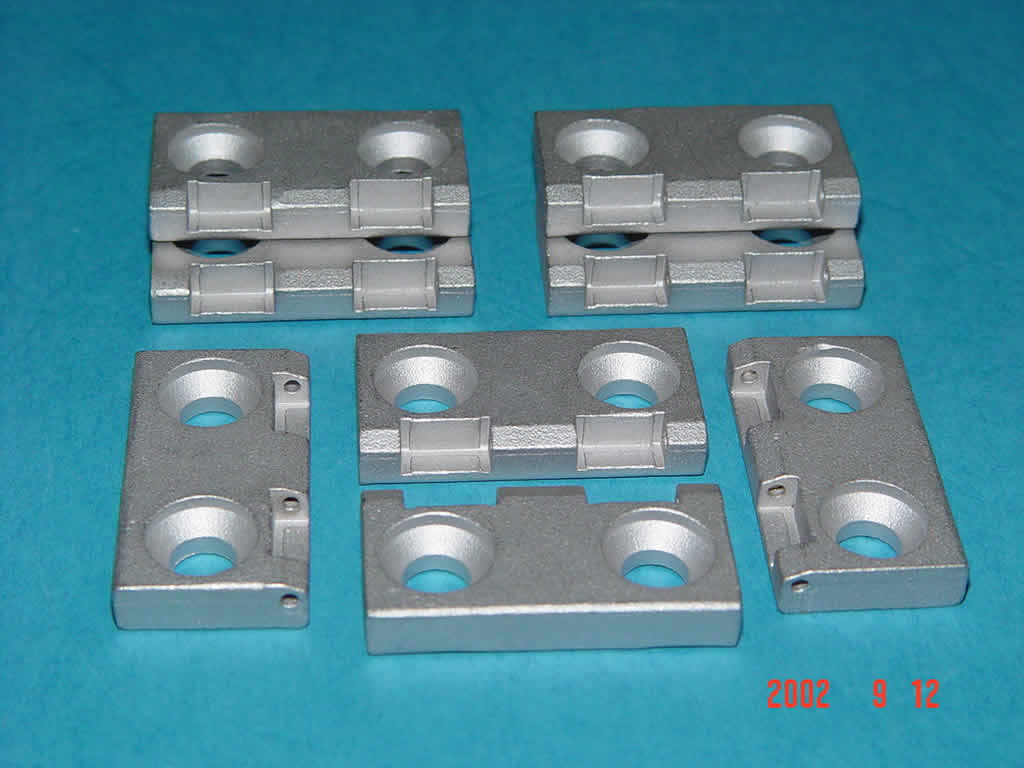

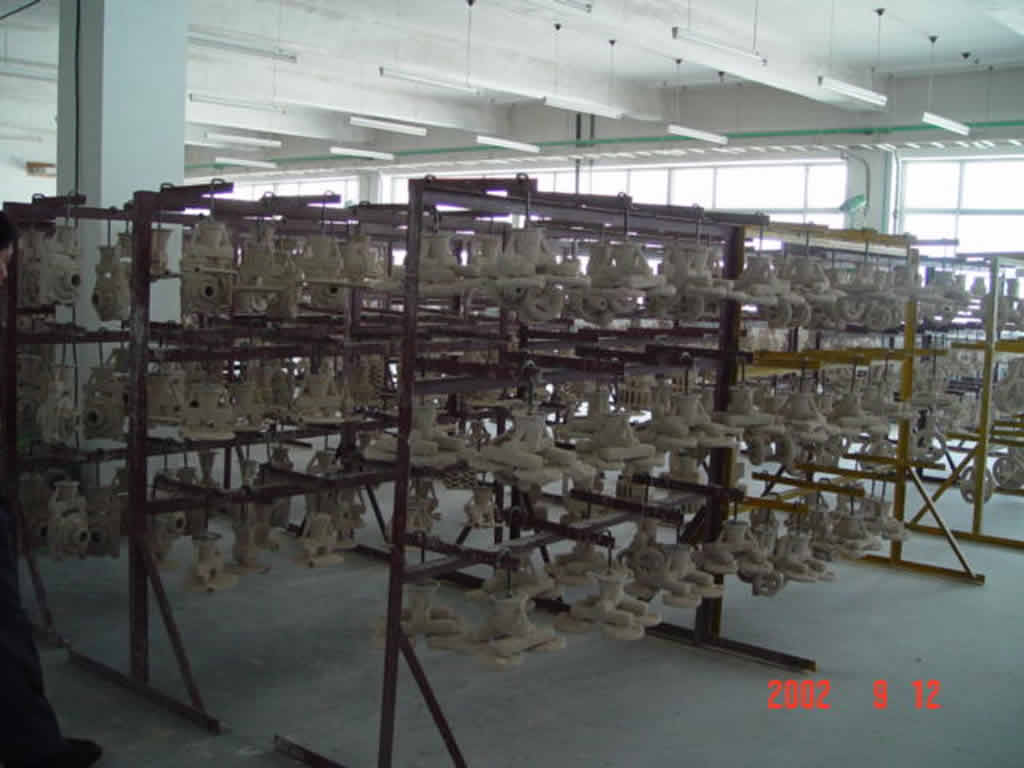

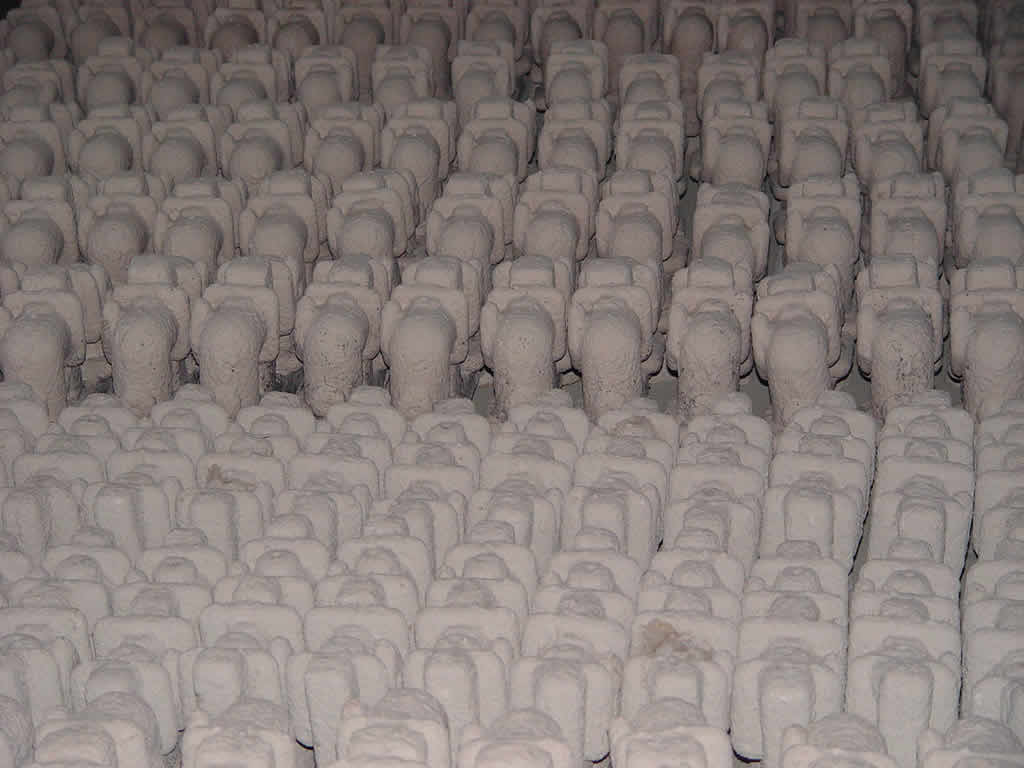

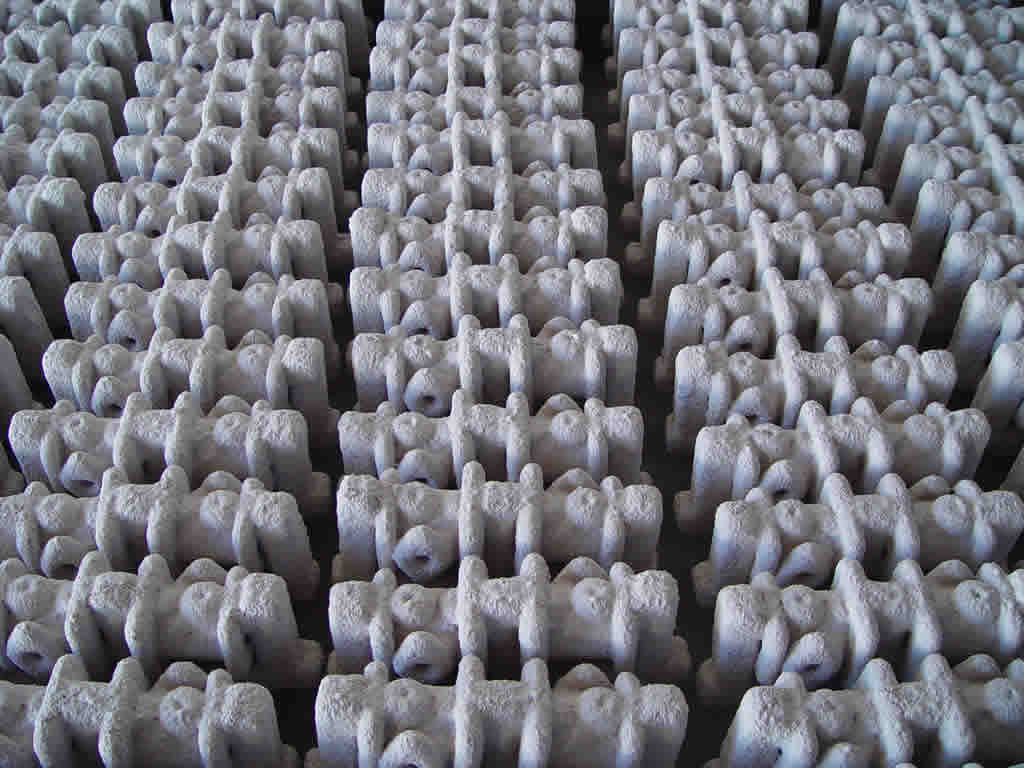

Floor Drain - Stainless Steel Lost Wax Casting	Loose-leaf - Stainless Steel Lost Wax Casting	Glass Clamp - Stainless Steel Lost Wax Casting	Wax Injection for Lost Wax Casting	Mold Dring for Lost Wax Casting	Mold for Lost Wax Casting

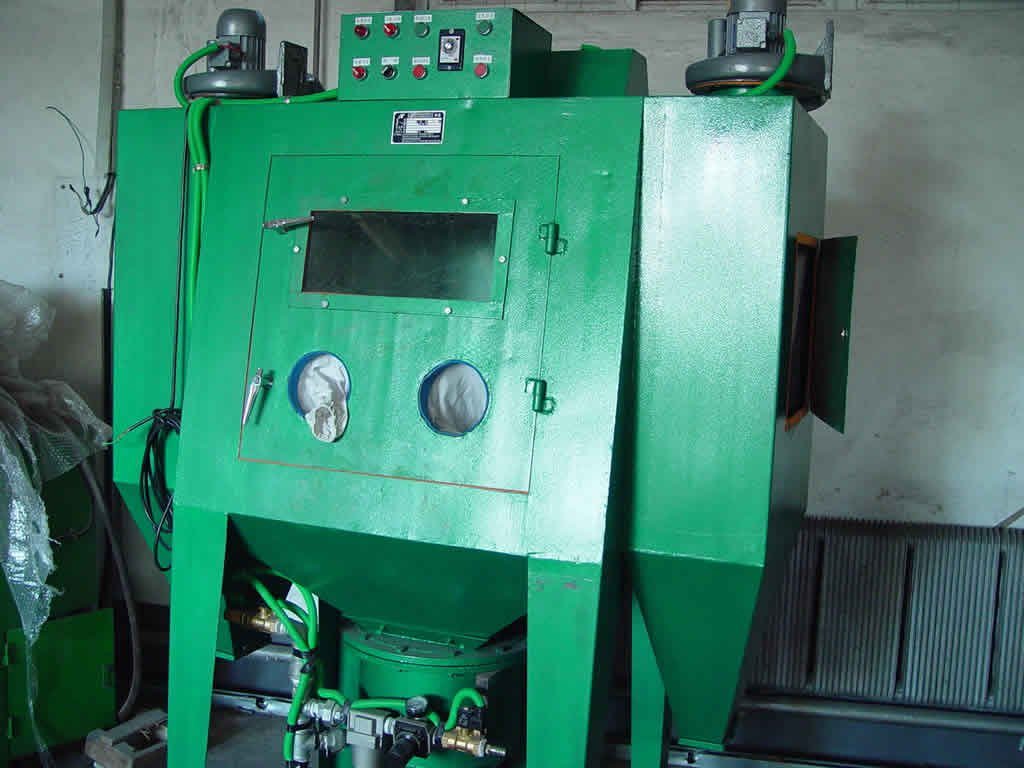

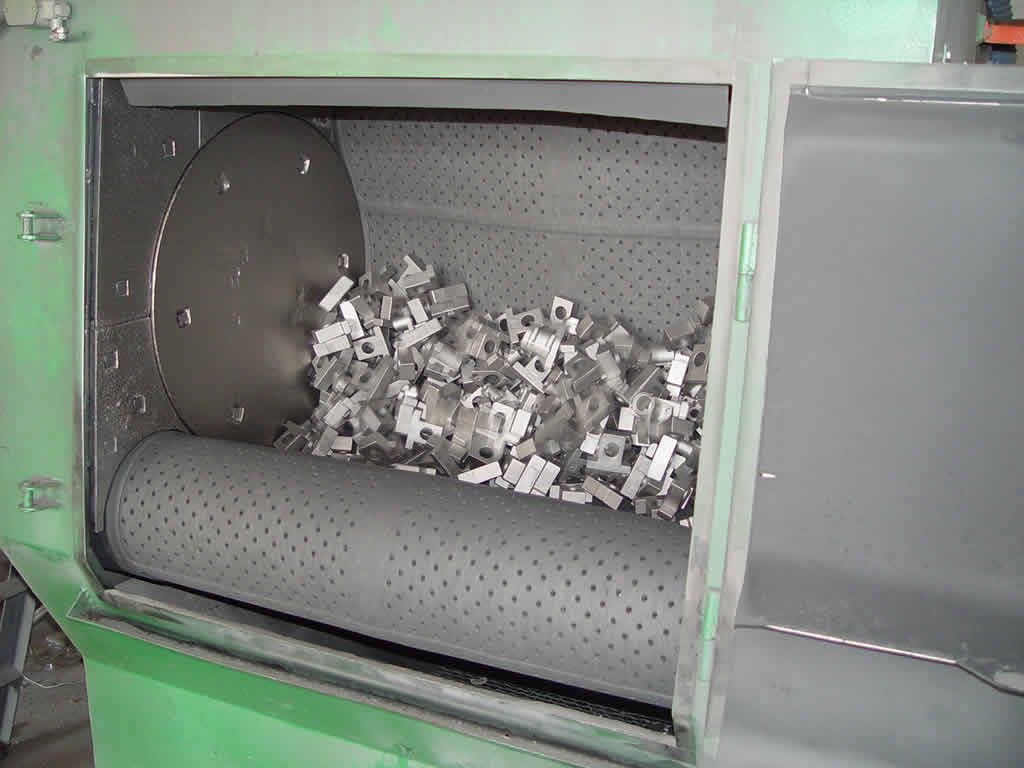

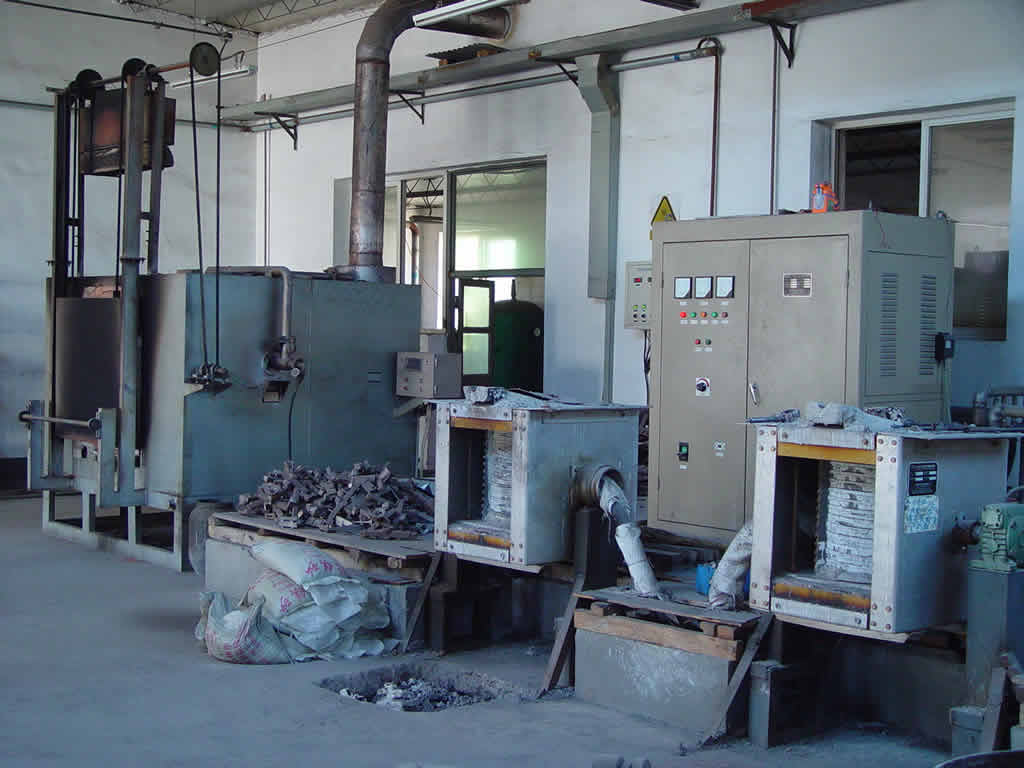

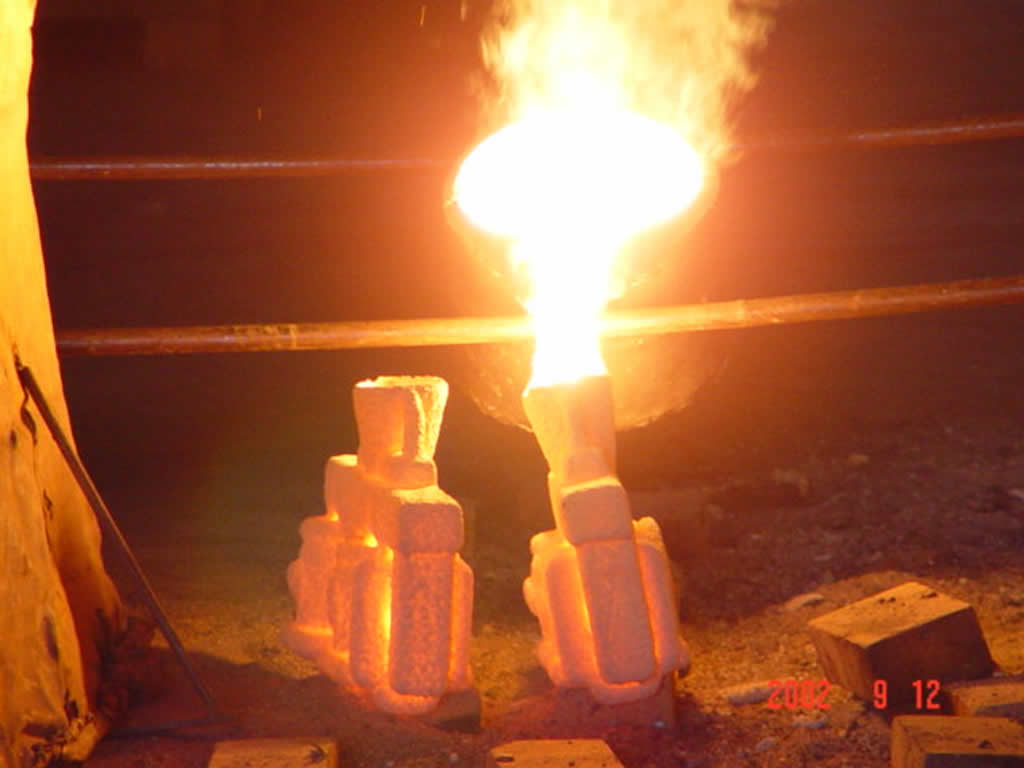

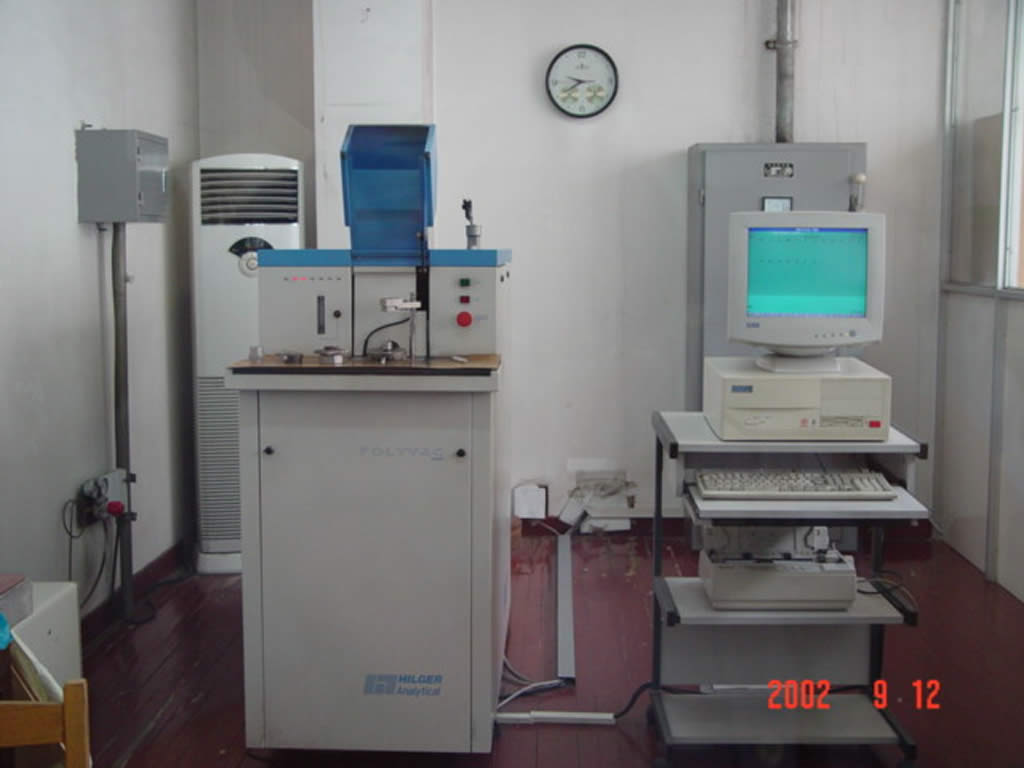

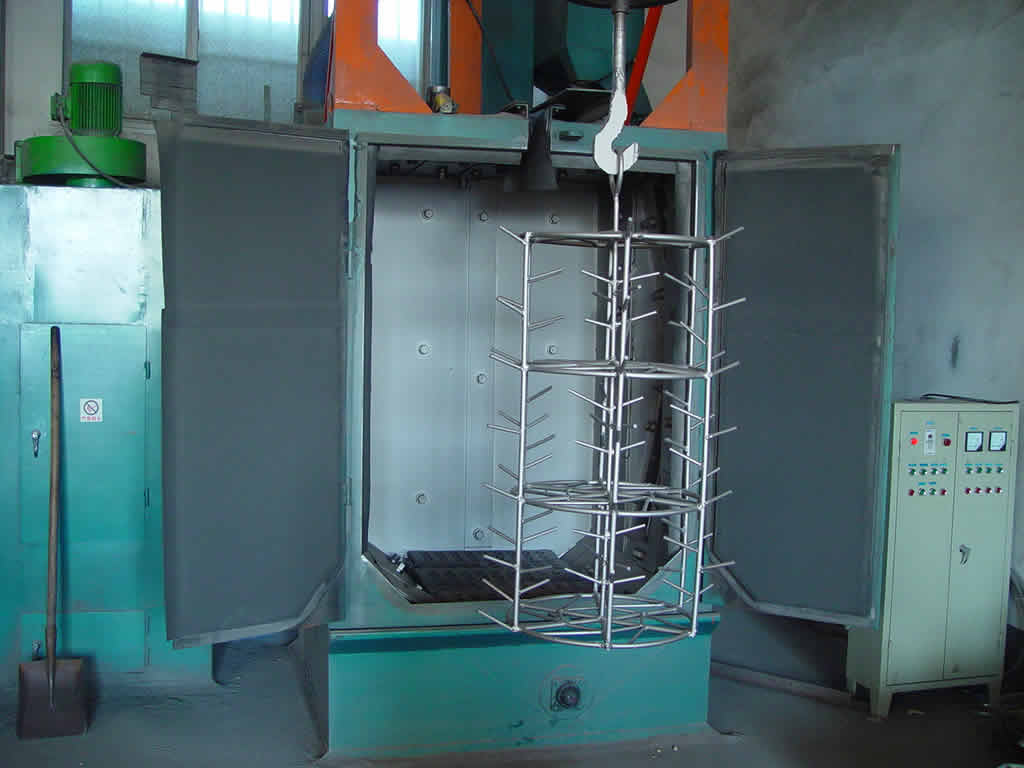

Electrical Furnace for Lost Wax Casting	Spectrum Analyzer for Lost Wax Casting	Melt Pouring for Lost Wax Casting	Shot Blast Machine for Lost Wax Casting	Shot Blast Machine for Lost Wax Casting	Shot Blast Machine for Lost Wax Casting

• Material:
• Stainless Steel: JIS SCS1, SCS2, SCS13, SCS13L, SCS14, SCS14L/ DIN G-X7Cr13, G-X20Cr14, G-X6CrNi18 9, G-X6CrNiMo18 10, 1.3955, 1.4308, 1.4408, 1.4581 / ASTM/AISI CA-15, CA-40, CF-3/304L, CF-3M/316L, CF-8/304, CF-8M/316, etc
• Carbon Steel: JIS SC450, SCC5 / DIN GS-45, GS-60 / ASTM WCB, 450-240, 80-40, etc
• Alloy Steel: JIS SCW480, SCSiMn2, SCCrMn3 / DIN GS-20Mn5, GS-37MnSi5, GS-34CrMo4
• Heat Resistance Steel: JIS SCH13, SCH21, SCH24/ DIN G-X15CrNiSi25 20 1.4840,G-X45CrNiSi35 25 1.4857 / ASTM HN, HK30, HK, HK40, HHM HP, HT
• Bronze or Copper: JIS BC6, ALBC6, etc
• Other materials of Carbon Steel, Alloy Steel, Hight Manganese Steel, Tool steel, Heat-resistant Steel,  Al-Si Alloy, etc also available according to customer's request.

• Required documents for offer to be provided by customer:
• Drawings with formats of IGS (3D), DWG or DXF (Auto CAD 2D), PDF, JPG and
• Standard of material (Preferable to provide Element Percentage of C, Si, Mn, P, S, etc and Physical/Machanical Properties of the material) and
• Technical requirements and
• Piece Weight of Rough Casting

• Production technology: Lost-wax with silica gel

• Main production equipment:
• Vertical wax-injectors
• Sand glueing tanks
• Wax-evaporator
• Intermediate frequency electrical induction furnaces
• Spectrum analyzer
• Shot blast machines
• Heat treatment furnaces
• Heat treatment water tank
• Acid solution and water cleaning tank
• Buffing / polishing machines / Electrical polishing

• Piece weight: 1.2g~80,000g per piece

• Taper hole, deep hole, bent hole D>Ø2    L=1D

• Minimum outside radius R0.3mm, minimum inside radius R0.5mm

• Minimum thickness of 1.5mm, some parts with minimum thickness of 0.8mm

• Tolerance of dimension:

Dimension Range (mm)	Common Tolerance	Special Tolerance
< 25	+/- 0.25 mm	+/- 0.13 mm
25 ~ 50	+/- 0.40 mm	+/- 0.25 mm
50 ~ 100	+/- 0.80 mm	+/- 0.50 mm
> 100	+/- 1 %	+/- 0.5 %

• Finish Machined/tooled products also available according to customer's request (Drawings and standard of products should be provided by customer.)

• Packing: In wooden cases

• Production Capacity: 100 Mt per month

• Duration of pattern-making and sample-making: Within 45 working days (Vary subject to the complexity of products)

• Minimum order: No limit

• Delivery: Within 45 working days after signing of contract and confirmation of samples by client
