Product images of steel casting (cast steel)

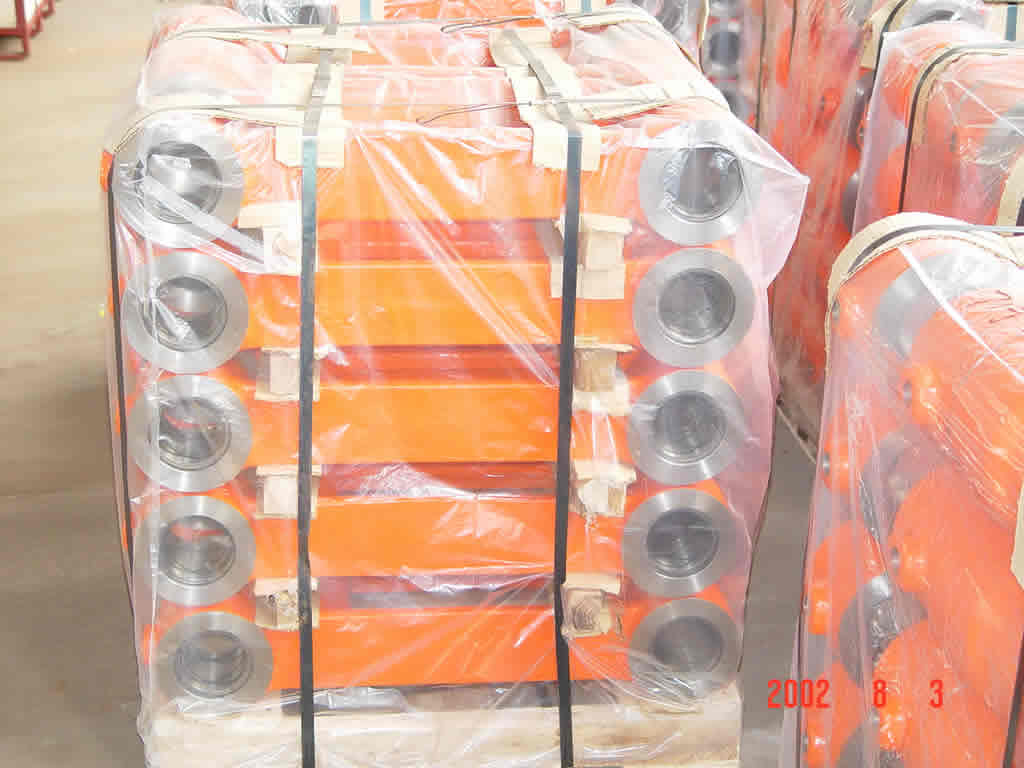

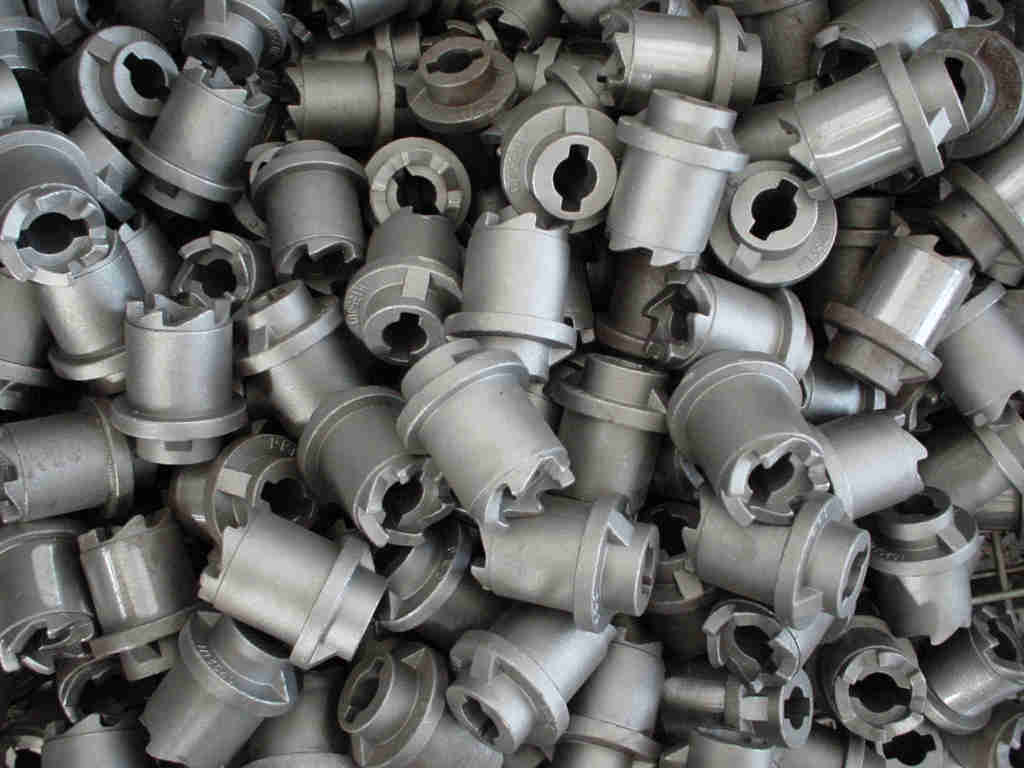

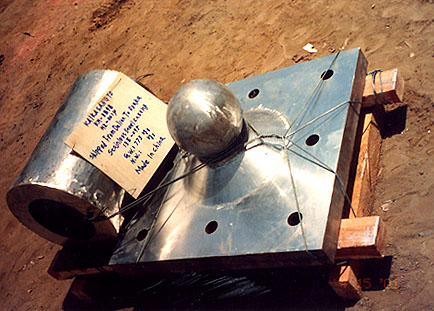

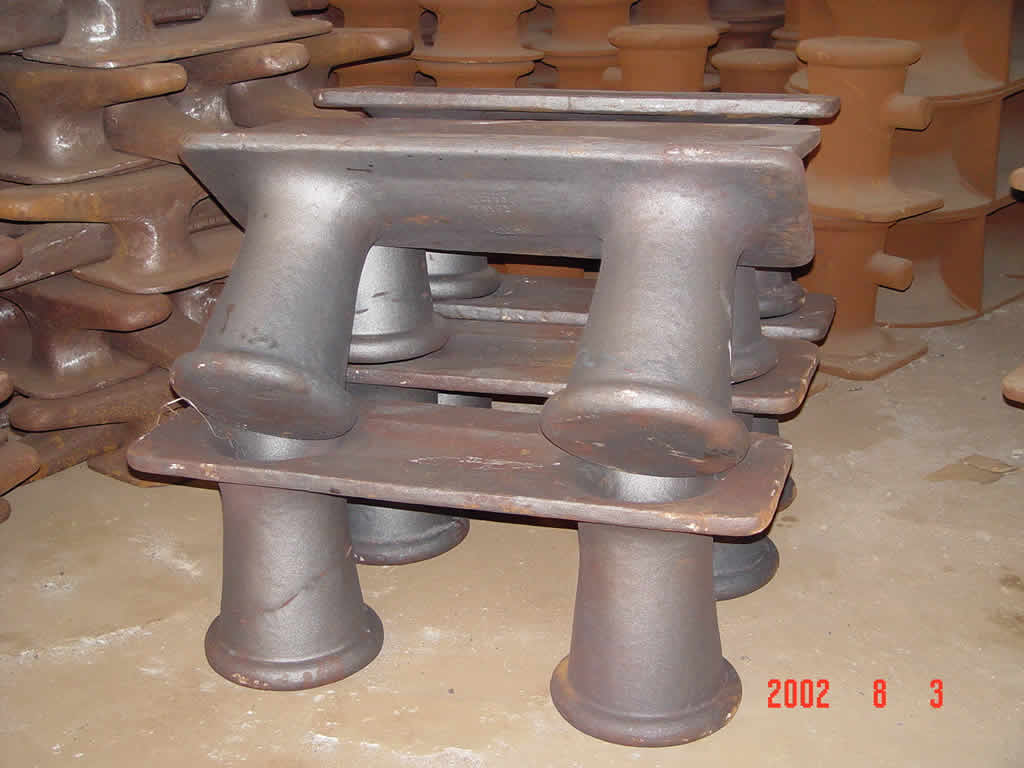

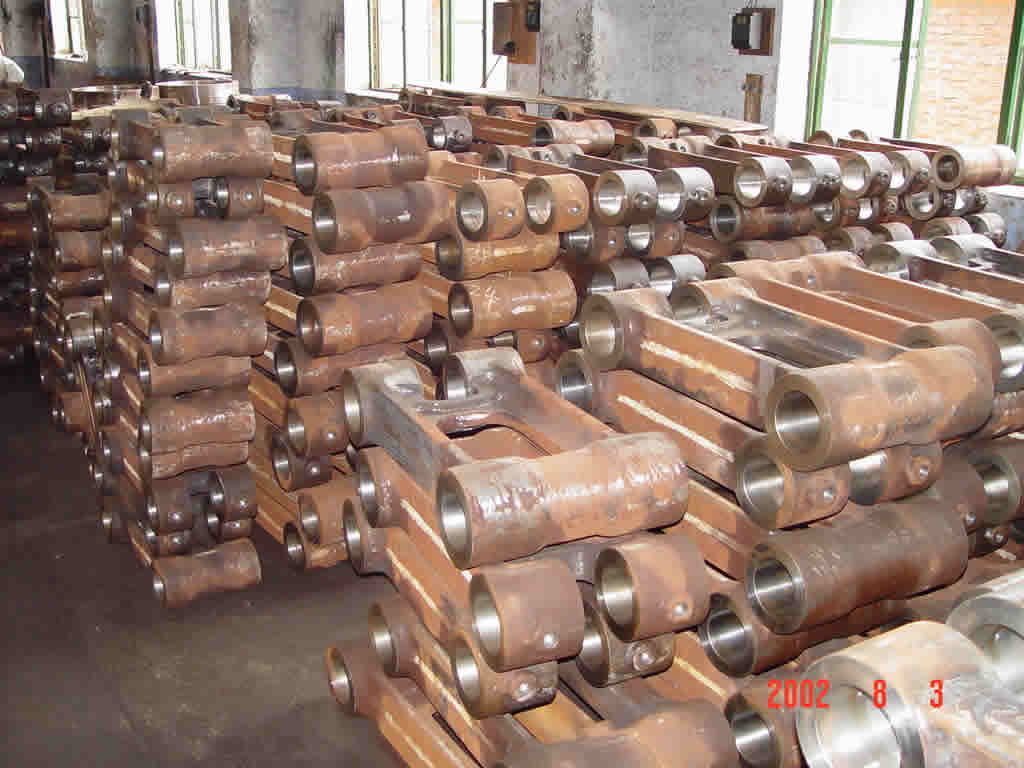

Carbon Steel Casting	Alloy Steel Casting Link	Alloy Steel Casting	Carbon Steel Casting	Alloy Steel Casting Ring	Stainless Steel Casting

• Material:
• Carbon Steel: JIS Such as SC450, SCC5 / DIN GS-45, GS-60 / ASTM 450-240, 80-40, WCB
• Alloy Steel: JIS SCW480, SCSiMn2, SCCrMn3 / DIN GS-20Mn5, GS-37MnSi5, GS-34CrMo4
• Heat Resistant Steel: JIS SCH / DIN G-X30CrNiSi25-12 / ASTM HH
• Stainless Steel: JIS SCS1, SCS2, SCS13, SCS14 / DIN G-X7Cr13, G-X20Cr14, G-X6CrNi18 9, G-X6CrNiMo18 10 / ASTM CA-15, CA-40, CF-3, CF-8M, etc
• Other materials also available according to customer's request.

• Required documents for offer to be provided by customer:
• Drawings with formats of IGS (3D), DWG or DXF (Auto CAD 2D), PDF, JPG and
• Standard of material (Preferable to provide Element Percentage of C, Si, Mn, P, S, etc and Physical/Mechanical Properties of the material) and
• Technical requirements and
• Piece Weight of Rough Casting

• Production technology: Sand casting

• Main production equipment:
• Intermediate frequency electrical induction furnaces and electrical arc furnaces (EAF)
• Heat treatment (Annealing) furnaces
• Shot blast machines
• Equipment for inspecting chemicals and physical properties
• Ultra sonic inspector
• Pin holes and cracks inspection with magnetic powder

• Piece weight: 2Kg~2,300Kg per piece 　

• Finish Machined/tooled products also available according to customer's request (Drawings and standard of products should be provided by customer.)

• Packing: In wooden cases

• Production capacity: 500 Mt per month

• Duration of pattern-making: Within 45 working days (Vary subject to the complexity of products)

• Minimum order: No limit

• Delivery: Within 45 working days after signing of contract and confirmation of samples by client
