China Wire Mesh Container,Wire Container,Wire Mesh Cage,Wire Cage & Box

~ China Welded Steel Wire Mesh Container, Wire Container, Wire Mesh Box / Case / Cage (Galvanized) - Chinese Supplier ~

Product images of wire mesh container (cage/box)

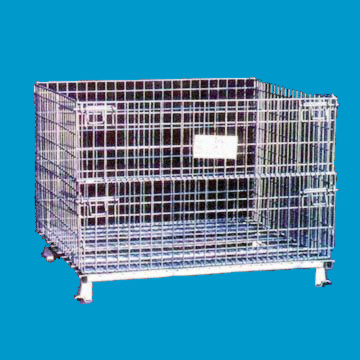

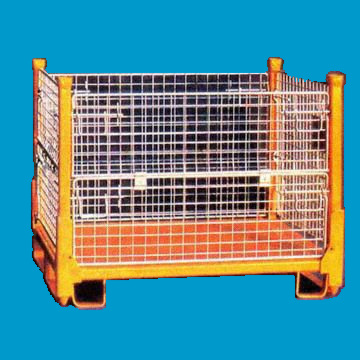

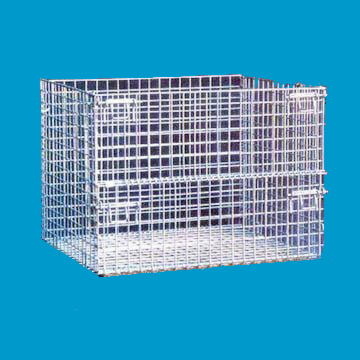

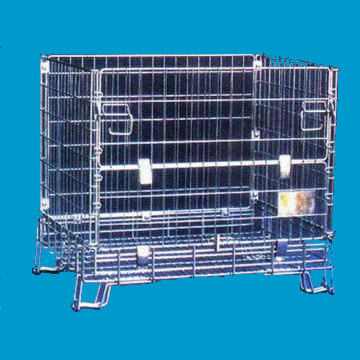

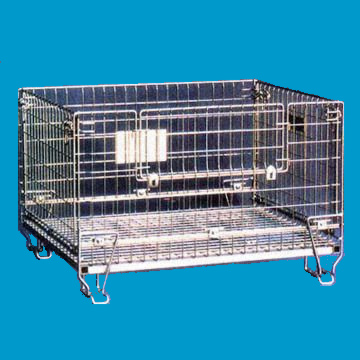

Wire mesh container 1	W1 - Wire mesh container	W2 - Mesh mesh container	FF1 - Wire container	FF2 - Wire container	FF3 - Wire container

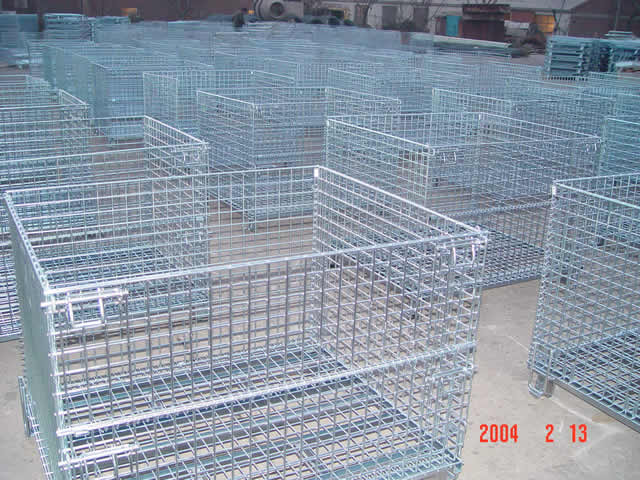

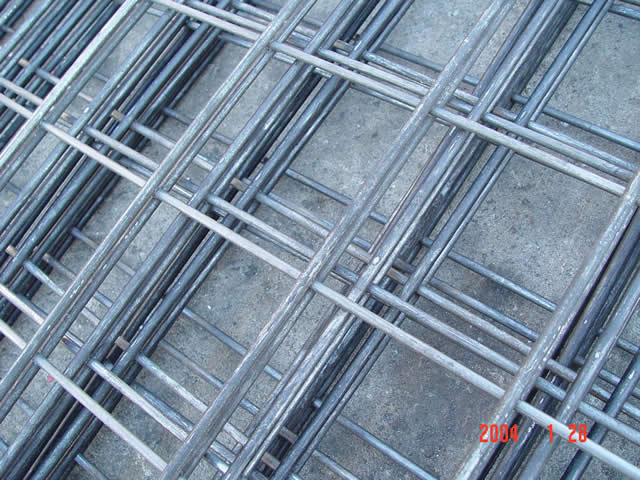

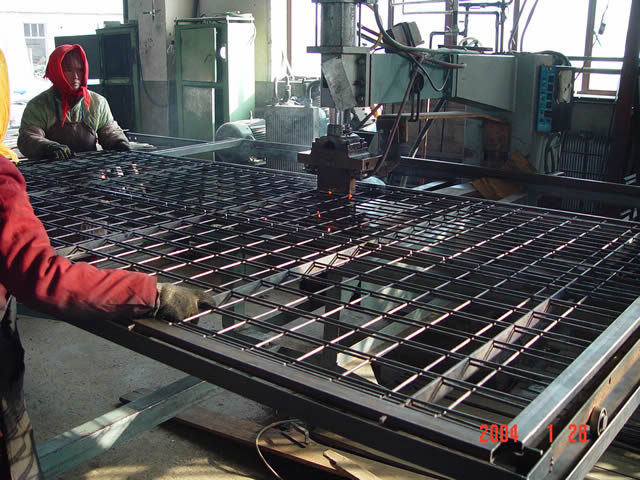

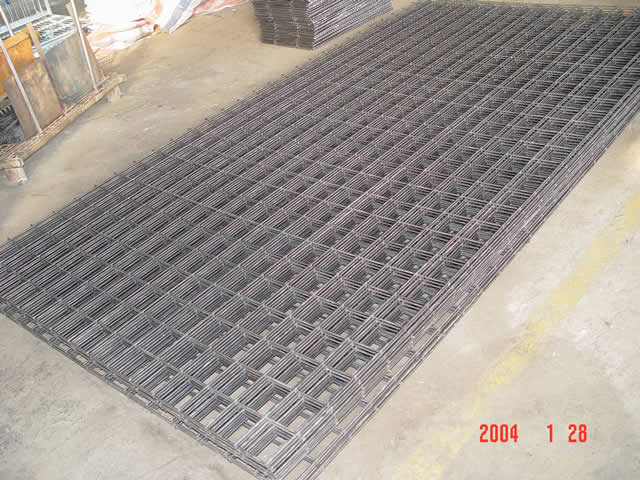

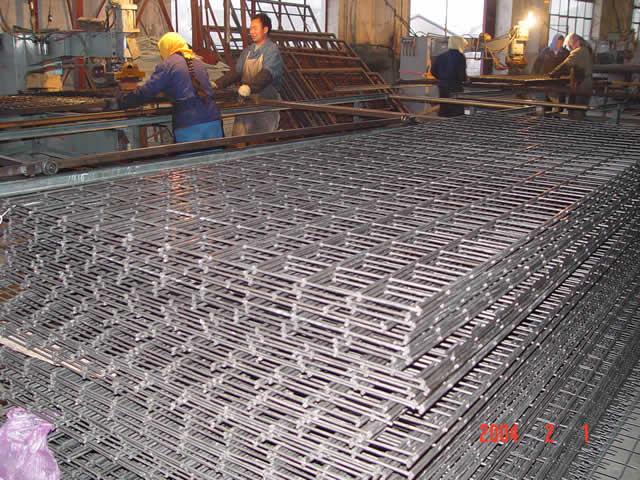

Wire mesh container 2	Welded Panel 1	Welded Panel 2	Electrical Spot Welding 1	Electrical Spot Welding 2

Material: Hard-drawn carbon steel wire, steel plate

Required documents for offer: Drawings with formats of IGS (3D), DWG or DXF (Auto CAD 2D), PDF, JPG and Standard of Material and Technical Requirements should be provided by customer

Production Technology: Electrical spot welding, common welding, electrical galvanizing (thickness>15um)

Regular specification

Model Specification Exterior Dimension Interior Dimension Wire Diameter Mesh Foot Height Load Volume Dead Weight Stack Galvanize Type

L x W x H (mm)
L x W x H (mm)
L x W x H (mm) mm mm mm Kg m³ Kg Storey Zinc Open

K-1 Wire container 800 500 540 830 530 550 760 460 400 4.8 25 x 50 100 450 0.15 21 3 Yes Full

E-1 Wire container 1000 800 850 1030 840 850 950 760 700 4.8 50 x 50 100 450 0.52 39.5 3 Yes Half

L-1 Wire container 1000 800 850 1030 840 850 950 760 700 6.0 50 x 100 100 800 0.52 46 3 Yes Half

L-2 Wire container 1200 1000 900 1230 1040 900 1150 960 750 6.2 50 x 100 100 1000 0.84 62 3 Yes Half

L-4 Wire container 1200 1200 1200 1200 1164 1200 1100 1100 1040 6.2 50 x 100 100 1000 1.26 87.3 2 Yes Half

W-1 Wire container 1000 800 850 1030 840 850 950 760 700 6.0 50 x 50 100 1300 0.52 51.5 3 Yes Half

W-2 Wire container 1200 1000 900 1230 1040 900 1150 960 750 6.2 50 x 50 100 1700 0.84 75.5 3 Yes Half

W-3 Wire container 1000 800 500 1030 840 500 950 760 350 6.0 50 x 50 100 800 0.26 39.5 3 Yes Half

S-1 Wire container 1200 1000 950 1230 1040 950 1150 960 800 6.2 50 x 50 100 1700 0.88 78 2 Yes Half

Other specifications also available according to customer's request (Drawings and standard of products should be provided by customer.)

Packing: In bulk bundled by steel strip

Production Capacity: 300 pieces per day excluding time of Zinc plating

Duration of pattern-making for wire mesh container (cage/box): Within 14 working days (Vary subject to the complexity of products)

Minimum order: 1 x 20' container per lot

Delivery: Within 30 working days after signing of contract
