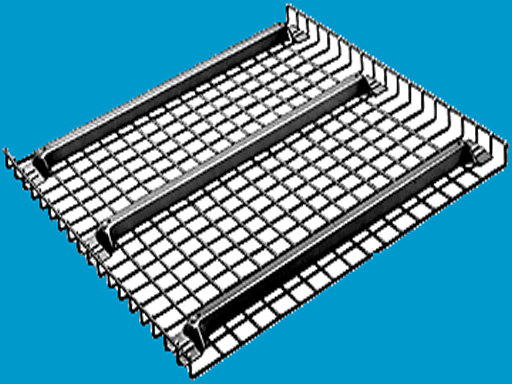

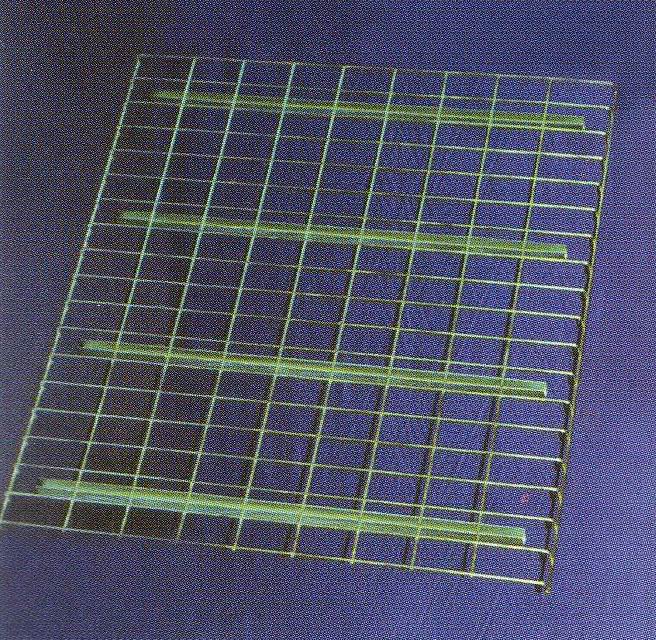

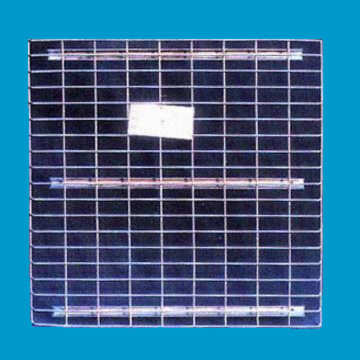

Product images of wire mesh deck/decking

F Wire mesh Deck / Decking	U Wire mesh Deck / Decking	F Wire Deck / Decking	U Wire Deck / Decking

• Material: Hard-drawn carbon steel wire and steel plate

• Required documents for offer: Drawings with formats of IGS (3D), DWG or DXF (Auto CAD 2D), PDF, JPG and Standard of Material and Technical Requirements should be provided by customer

• Production Technology: Electrical spot welding, common welding, electrical galvanizing (thickness>15um), static electrical powder coating

• Regular specification

Item	Model	Dimension	Wire		Channel Support		Loading	Galvanized
		Length x Width	Grid	Diameter			High 40' FCL	(Powder Coating*)
		Inch	Inch	mm	Piece	Type	Piece
1	3646F3-A5.5	36 x 46 Wire deck	2 x 4	5.5	3	F	1,946	Available
	3646F3-B5.5		2.5 x 4.5				2,042
2	3652F3-A5.5	36 x 52 Wire deck	2 x 4	5.5	3		1,798
	3652F3-B5.5		2.5 x 4.5				1,912
3	4246F3-A5.5	42 x 46 Wire deck	2 x 4	5.5	3		1,700
	4246F3-B5.5		2.5 x 4.5				1,902
4	4252F3-A5.5	42 x 52 Wire deck	2 x 4	5.5	3		1,464
	4252F3-B5.5		2.5 x 4.5				1,464
5	4846F3-A5.5	48 x 46 Wire deck	2 x 4	5.5	3		1,468
	4846F3-B5.5		2.5 x 4.5				1,610
6	4852F3-A5.5	48 x52 Wire deck	2 x 4	5.5	3		1,370
	4852F3-B5.5		2.5 x 4.5				1,464
7	4858F3-A5.5	48 x 58 Wire deck	2 x 4	5.5	3		1,274
	4858F3-B5.5		2.5 x 4.5				1,330
1	3646U3-A5.5	36 x46 Wire deck	2 x 4	5.5	3	U	2,030
	3646U3-B5.5		2.5 x 4.5				2,042
2	3652U3-A5.5	36 x 52 Wire deck	2 x 4	5.5	3		1,870
	3652U3-B5.5		2.5 x 4.5				1,912
3	4246U3-A5.5	42 x 46 Wire deck	2 x 4	5.5	3		1,763
	4246U3-B5.5		2.5 x 4.5				1,902
4	4252U3-A5.5	42 x 52 Wire deck	2 x 4	5.5	3		1,464
	4252U3-B5.5		2.5 x 4.5				1464
5	4846U3-A5.5	48 x 46 Wire deck	2 x 4	5.5	3		1,531
	4846U3-B5.5		2.5 x 4.5				1,682
6	4852U3-A5.5	48 x 52 Wire deck	2 x 4	5.5	3		1,400
	4852U3-B5.5		2.5 x 4.5				1,464
7	4858U3-A5.5	48 x 58 Wire deck	2 x 4	5.5	3		1,300
	4858U3-B5.5		2.5 x 4.5				1,320
ChannelSupport: Width: 30mm Height: 35mm Steel Plate Thickness: 2mm
Deckings with various Wire Diameters & Channel Support Quantity available (*Powder Coating is available subject to clients' request)

• Other specification also available according to customer's request (Drawings and standard of products should be provided by customer.)

• Packing: In bulk bundled by steel strip

• Prodcution capacity: 1500 pieces per day

• Duration of pattern-making: Within 7 working days (Vary subject to the complexity of products)

• Minimum order: 1 x 40' container per lot

• Delivery: Within 15 working days after signing of contract
